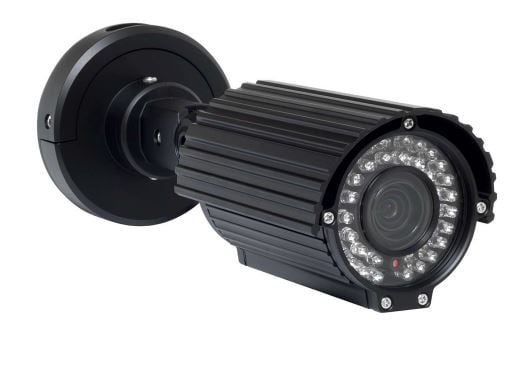

UIR-2142V-B EX-SDI IR Bullet 1080P RES2MP 40 IR100 Ft 2.8~12MM ICR
In stock
SKU
cctv:uir2142vb
Eyemax / EX-SDI IR Bullet / 1080p Res(2MP) / 40 IR/100ft / 2.8~12mm / ICR / DC 12V
SPECIFICATIONS
| Resolution | 1080P, 720P |
| Sensor |
1/2.9 inch SONY CMOS (IMX-222 / IMX322) |
| Total Pixels | 2000(H) x 1241(V) = 2,482,000 |
| Effective Pixels | 1944(H) X 1092(V) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE274M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) |
| Min.Illumination | IR Product: 0 Lux at IR On General Product: 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| Shutter | AUTO / MANUAL (1/30sec ~ 1/60,000sec) / Flicker |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / X2 ~ x32 |
| DNR |
OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| ACE | OFF / LOW / MIDDLE / HIGH |
| Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN, |
| Privacy | OFF / ON |
| Motion | OFF / SET |
| D.ZOOM | x1.0 ~ x16.0 |
| FLIP | OFF / ON |
| DEFOG | OFF / ON |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| COMM | RS-485 (PELCO-D) |
| SMART IR (IR product SPEC.) | ADJUSTABLE (0 ~ 20 STEP) |
| Operating Temperature / Humidity | 14℉ ~ 120℉(-10°C ~ 50°C) / 30%~80% RH |
| Storage Temperature / Humidity | -4℉ ~ 140℉(-20°C ~ 60°C) / 20%~90% RH |
| Power | DC12V [ AC24V / DC12V DualPower (option) ] |
| signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M)) |
