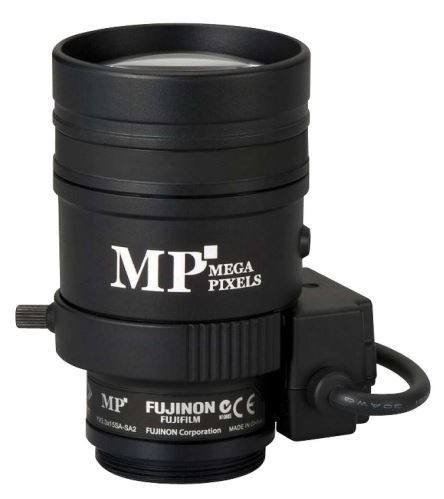

LA-MPFU1550AS MEGA PIXEL 15 - 50MM VARI-FOCAL Lens
In stock
SKU
cctv:lampfu1550as-unavailable
3M Pixel • Built-in ND filterCS Mount Type • DV Auto IrisTelephoto Long Focal • Wide Angle
FEATURES
- High image-quality monitoring with optical performance
- supporting 3 megapixels.
- f15 ~ 50mm, 3.3x zooming application compatible lens.
- Designed to maximize optical performance with high-accuracy
- aspheric lens, low-dispersion glass, and high refractive-index glass.
- Built-in ND filter of T360, supporting high sensitivity cameras.
SPECIFICATIONS
| Focal Length (mm) | 15 ~ 50(3.3×) | ||
| Iris Range | F1.5 ~ T360(Equivalent to F360) | ||
|
Operation
|
Zoom | Manual | |
| Focus | Manual | ||
| Iris | Auto(DC Type)(*1) | ||
|
Angle Of View
(H×V) |
1/3" |
WIDE
|
18°08′ × 13°34′ |
|
TELE
|
5°35′ × 4°12′ | ||
| 1/4" |
WIDE
|
13°34′ × 10°10′ | |
|
TELE
|
4°12′ × 3°10′ | ||
| Focusing Range (From Front Of The Lens)(m) | ∞ ~ 0.8 | ||
|
Object
Dimensions at M.O.D. (H×V)(mm) |
1/3" |
WIDE
|
271 × 202 |
|
TELE
|
87 × 66 | ||
| 1/4" |
WIDE
|
202 × 151 | |
|
TELE
|
66 × 49 | ||
| Back Focal Distance( in air)(mm) | MIN.7.7 | ||
| Exit Pupil Position (From Image Plane)(mm) | −36 | ||
| Filter Thread (mm) | _ | ||
| Mount | CS | ||
| Mass (g) | 60 | ||
| Coil Resistance | Drive Coil 190Ω Damping Coil 500Ω |
||
| Currnet Consumption | 23mA(Max.) at DV 4V | ||
| Remarks | ·With Metal Mount (*1)When power is turned off, iris will automatically close. YV4.3 × 3.15SA-SA2L : Long Cable Type (230mm) |
||
DIMENSIONS
