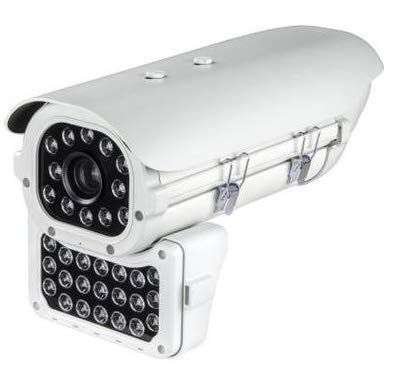

ULP-P2132VE-W EX-SDI License Plate Capture 1080P 5~50MMVF Lens
In stock
SKU
cctv:ulpp2132vew-unavailable
1/2.9 inch SONY CMOS (IMX-291)
High Definition (1080P)
0 Lux at IR On (IR LED 33 pcs)
DNR (Digital Noise Reduction)
WDR (Wide Dynamic Range) Day & Night (ICR Option)
Easy Installation
ICR V/F lens, DC Auto IRIS V/F Lens, DC Auto IRIS & TDN V/F Lens
Focal Length : 5~50mm
SPECIFICATIONS
| Resolution | 1080P, 720P, |
| Sensor | 1/2.9 inch SONY CMOS (IMX-291) |
| Total Pixels | 1945(H) x 1109(V) = 2.16M |
| Effective Pixels | 1945(H) X 1097(V) = 2.13M |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE292M (EX-SDI, HD-SDI) / (TVI, CVI, CVBS: 1.0Vp-p (75ohm) : Option) |
| Min.Illumination | 0 Lux at IR On |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/30,000sec) / FLICKER |
| SENS_UP | OFF / X2 ~ x32 |
| DNR / ACE | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN |
| PRIVACY / FLIP / MOTION / DEFOG | OFF / ON |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness / Smart IR / Brightness | ADJUSTABLE (Sharpness : 0 ~ 10 STEP / Smart IR, Brightness : 0 ~ 20 STEP ) |
| COMM. | RS-485(PELCO-D) |
| Temperature/Humidity | Operating (-10’C~+50’C / 30%~80% RH) / Storage (-20’C~+60’C / 20%~90% RH) |
| Power | DC12V |
| signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (500M)) |
