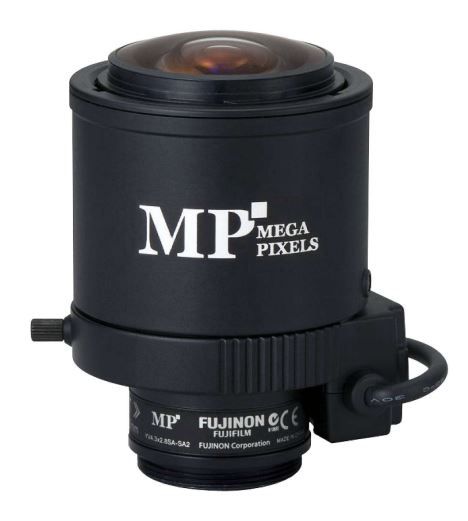

LA-MPFU2812AS MEGA PIXEL 2.8-12MM VF Lens
In stock
SKU
cctv:lampfu2812as
3M Pixel • f2.8~12mm VarifocalBuilt-in ND filter • CS Mount TypeTelephoto Long Focal • Wide Angle
FEATURES
- High image-quality monitoring with optical performance supporting 3 megapixels.
- Wide f2.8 ~ 12mm range accommodates various applications.
- Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass.
- Built-in ND filter of T360, supporting high sensitivity cameras.
SPECIFICATIONS
| Focal Length (mm) | 2.8 ~ 12(4.3×) | ||
| Iris Range | F1.4 ~ T360(Equivalent to F360) | ||
| Operation | Zoom | Manual | |
| Focus | Manual | ||
| Iris | Auto(DC Type)(*1) | ||
| Angle Of View (H×V) |
1/3" | WIDE | 100°02′ × 74°03′ |
| TELE | 23°26′ × 17°36′ | ||
| 1/4" | WIDE | 74°03′ × 55°06′ | |
| TELE | 17°36′ × 13°13′ | ||
| Focusing Range (From Front Of The Lens)(m) | ∞ ~ 0.3 | ||
| Object Dimensions at M.O.D. (H×V)(mm) |
1/3" | WIDE | 753 × 476 |
| TELE | 131 × 98 | ||
| 1/4" | WIDE | 476 × 329 | |
| TELE | 98 × 73 | ||
| Back Focal Distance( in air)(mm) | 7.83 | ||
| Exit Pupil Position (From Image Plane)(mm) | 455 | ||
| Filter Thread (mm) | _ | ||
| Mount | CS | ||
| Mass (g) | 80 | ||
| Coil Resistance | Drive Coil 190Ω Damping Coil 500Ω |
||
| Currnet Consumption | 23mA(Max.) at DV 4V | ||
| Remarks | ·With Metal Mount (*1)When power is turned off, iris will automatically close. YV4.3 × 2.8SA-SA2L : Long Cable Type (230mm) |
||
DIMENSIONS
