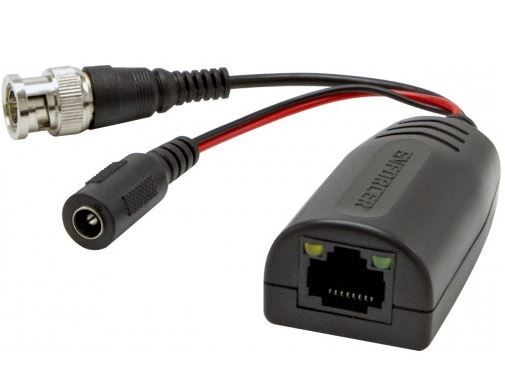

Seco-larm EB-P101-20PHQ 4-in-1 HD Video and Power Balun

In stock

SKU

secolarm:ebp10120phq

$11.84

Seco-larm EB-P101-20PHQ 4-in-1 HD Video and Power Balun SOLD AS PAIR - MALE AND FEMALE VERSION INCLUDED IN PURCHASE

Wishlist Compare

4-in-1 TVI / CVI / AHD / Analog video up to 5MP
NTSC / PAL / SECAM compatible
Transmits video up to 1,476ft (450m) depending on format, resolution, and cable used
Transmits power for 12/24 VAC/VDC cameras
Built-in TVS surge protection
Anti-static and wave filters
Lightning Protection — Grade II
60dB Crosstalk and noise immunity
Exceptional interference rejection
Passive operation — no external power required
Real-time transmission over low-cost Cat5e/6 cable instead of costly coaxial cable
RJ45 Jack and pigtails for easy installation
Includes one transmitter and one receiver

Range	TVI: 1080p: 820' (250m) / 5MP: 590' (180m) CVI: 1080p: 820' (250m) / 4MP: 656' (200m) AHD: 1080p: 820' (250m) / 5MP: 590' (180m) Analog (B/W): 1,476' (450m) Analog (Color): 1,312" (400m)
Common/differential mode rejection	60db,15kHZ~71MHz
Operating Temperature	-4°~158°F (-20°~70°C)
Humidity range	0~95% (Non-condensing)
Power	No external power required
Wire Type	UTP (Unshielded Twisted Pair) 24~16 AWG
Wire Category	Cat5~Cat6
Camera Side - Power Out	DC Plug
Camera Side - Video In	BNC
Impedance	Coax, male BNC: 75Ω@1MHz RJ45:100Ω@1MHz
Attenuation	8dB max.
Frequency response	DC-71MHz
Max. amperage	1A@12VDC
Power Range	755' (230m) max.
UTP Connection	Nickel Plated
Video Format	NTSC, PAL, SECAM
Video Input	2KV (common mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999)
Video Output	2KV (differential mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999)
DC Loop resistance	52Ω/1000' (18Ω/100m)
Differential capacitance	19pF/ft max. (62pF/m max.)
Storage Temperature	-40°~302°F (-40°~150°C)
Case	ABS Plastic
Weight	2.5-oz (72g)
Dimensions	2-3/8"x1-3/16"x1-3/16" (60x20x30mm) Excluding pigtail and BNC connector
