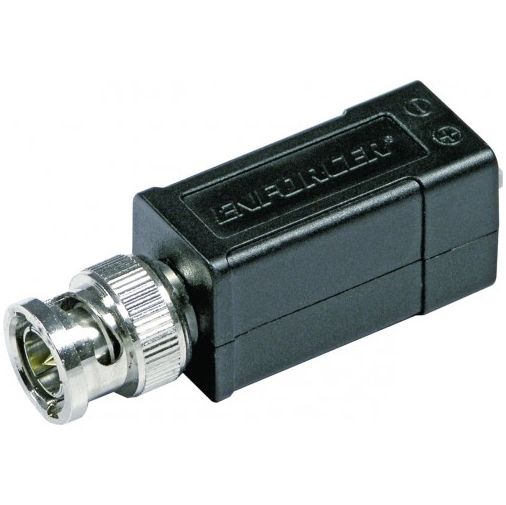

Seco-larm EB-P101-01HQ HD-AHD/TVI/CVI Balun - Standard Balun
In stock
SKU
secolarm:ebp10101hq
$6.50
- Real-time transmission over UTP Cat5e/6
- 3-in-1 HD-AHD/TVI/CVI
- Range over 1080p:
- HD-TVI: 623ft (190m)
- HD-CVI: 720ft (220m)
- HD-AHD: 720ft (220m)
- PAL/NTSC/SECAM compatible
- Anti-static and wave filter
- Lightning protection – Grade III
- 60dB crosstalk & noise immunity
- Exceptional interference rejection
- Operating temperature: -4~158ºF (-20~70º C)
| Max. Range | TVI- 720p: 623ft (190m) / 1080p: 623ft (190m), CVI- 720p: 1443ft (440m) / 1080p: 720ft (220m), AHD- 720p: 984ft (300m) / 1080p: 720ft (220m) |
| Common Mode Rejection | 60dB, 15kHz~42MHz |
| Power | No external power required |
| Wire Type | UTP (Unshielded Twisted Pair) 24~16 AWG |
| Wire Category | Cat2~Cat6 |
| Impedance | Coax, male BNC- 75Ω@1MHz, Screwless terminal- 100Ω@1MHz ±20Ω |
| Attenuation | 1.5dB max |
| Frequency response | DC~42MHz |
| Surge Protection | Renewable solid state surge protection |
| UTP Connection | Nickel plated |
| Video Format | NTSC, PAL, SECAM |
| Video Input | 2KV (common mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999) |
| Video Output | 2KV (differential mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999) |
| DC Loop resistance | 52Ω/1000’ (18Ω/100m) |
| Differential Capacitance | 19pF/ft max. (62pF/m max.) |
| Operating Humidity | 0~95 % (Non-condensing) |
| Operating Temperature | -4°~158° F (-20°~70° C) |
| Storage Temperature | -40°~305° F (-40°~150° C) |
| Case | ABS Plastic |
| Weight | 1.4-oz (40g) |
| Dimensions | 1-3/8"x11/16"x3/4" (35x17x19mm) excluding BNC connector |
