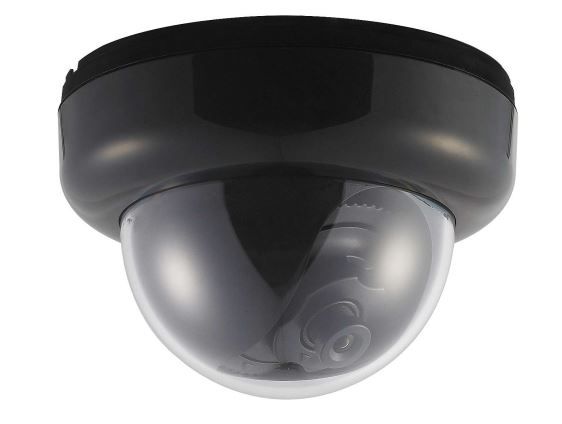

DO-612L Superdome 650TVL Indoor Dome Camera, Fixed Lens

Be the first to review this product
In stock
SKU
cctv:do612l

Login for lower price
If you dont have an account, create here

1/3" Sony SUPER HAD II CCD • HERO DSP • 3-Axis Construction • 3.6mm Fixed Lens • 3DDNR(3D Digital Noise Reduction) • SENS-UP • HLM(High Light Mask Function) • L Size

Wishlist Compare

Share it:

Overview

OSD CAMERA SETUP

It has have a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera.

3-AXIS DOME CONSTRUCTION

Accompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need.


FEATURES

  • 1/3" Sony Super HAD II CCD
  • 3.6mm Fixed Lens
  • Single Scan WDR (Wide Dynamic Range)
  • 650 TVL : Razor sharp high resolution
  • OSD – On Screen Display – Easy camera setup
  • 3-Axis Design : Able to change angle.
  • Easy Flip Open Cover
  • DC 12V


SPECIFICATIONS

Resolution 650 TV Lines
Sensor 1/3 inch SONY Super HAD II CCD
Total Pixels 811(H) × 508(V) 410K pixels (NTSC)
Effective Pixels 768(H) × 494(V) 380K pixels (NTSC)
Scanning System 2:1 Interlace
S/N (Y signal) More than 50dB (AGC off)
Frequency Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC)
Video Output CVBS : 1.0Vp-p / 75ohm
Min. Illumination 0.1 Lux at F1.2 (Color)

0.001 Lux(sens-up × 256)
White Balance ATW / AWC / PUSH / Manual
Electronic Shutter Speed Auto / Manual (1/60 sec ~ 1/100,000 sec) (NTSC)
OSD Built-in
Backlight Compensation Low / Middle / High / HLM / Off Selectable
Gain Control Low / Middle / High / Off Selectable
3D DNR Low / Middle / High / Off Selectable
WDR (Wide Dynamic Range) On / Off
Sens-up x2 ~ × 256 / Off
Day & Night Auto / Color / BW / CDS
Motion Detection ON / OFF
Privacy Mask ON / OFF (6 Zone)
Mirror Mirror / V-flip / Rotate/ Off
Sync Internal / Auto
Operating Temperature / Humidity −10°C ~ +60°C(14°F ~ 140°F) / 30 ~ 80% RH
Storage Temperature / Humidity −20°C ~ +80°C(−4°F ~ 176°F) / 20 ~ 90% RH
Power Source DC 12V
