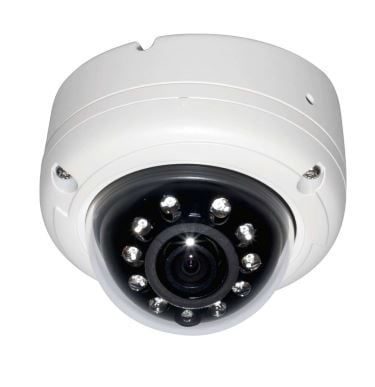

IA-6110 ACES 650TVL IR Dome Camera, Fixed Lens
In stock
SKU
cctv:ia6110
1/3 INCH SONY SUPER HAD CCD II • High Resolution (650 TVL) • High Sensitivity Two Function in One Product (Surface + Flush) Upgraded Waterproof Housing (IP68 rating) • 0 Lux at IR On (IR LED 10pcs) • Day & Night • 3DDNR Function • Easy Installation 2.9mm • 3.6mm Fixed Lens
SPECIFICATIONS
| MODEL | NTSC |
| Resolution | 650 TV Line |
| Sensor | 1/3 INCH SONY SUPER HAD CCD II |
| Total Pixels | 811(H) × 508(V) 410K pixels |
| Effective Pixels | 768(H) × 494(V) 380K pixels |
| Scanning System | 2:1 Interlace |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Frequency | Horizontal: 15.734KHz / Vertical: 59.94Hz |
| Video Output | CVBS: 1.0Vp-p / 75ohm |
| Min.Illumination | 0 Lux at IR On |
| White Balance | AWC |
| Electronic shutter speed | AUTO (1/60 sec ~ 1/100,000 sec) |
| AGC (Auto Gain Control) | ON |
| 3DDNR (3D Digital Noise Reduction) | ON |
| Day & Night | AUTO |
| Operating Temperature/ Humidity | 14°F ~ 122°F(−10°C ~ 50°C) / 30% ~ 80% RH |
| Storage Temperature/ Humidity | −4°F ~ 140°F(−20°C ~ 60°C) / 20% ~ 90% RH |
| Power | DC12V |
