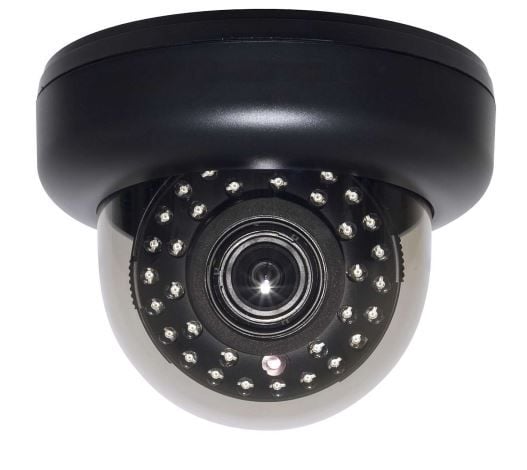

DI-1635V Superdome 650TVL Indoor IR Dome Camera, Auto-Iris VF Lens
In stock
SKU
cctv:di1635v
$70.00
1/3″ Sony SUPER HAD II CCD • HERO DSP • 4-Axis Construction • 35 IR LED • 2.8~12mm Auto Iris Vari-Focal Lens • 3DDNR(3D Digital Noise Reduction) • SENS-UP • HLM(High Light Mask Function) • LSC(Lens Shading Compensation)
Overview
Easy Installation
It is all about something easy to deal with. No more drill thru the camera. Just install mount and Twist and Lock.
3-Axis? We give you 4-Axis
3-Axis dome construction feature is pretty much standard on security industry. But, on infrared dome you will be needing one more axis. The extra axis provides you with more flexible infrared coverage and easy access to lens adjustments.
SMART IR : Evenly spread Infrared Beam
Have you ever experienced with any infrared camera with intense and strong IR light, so you couldn’t see anything in close range. This IR series specially designed IR camera solved the problem. Close and long range infrared image can’t be any better than this IR.
FEATURES
- 1/3" Sony Super HAD II CCD
- 2.8 ~ 12mm Auto Iris Vari-focal Lens
- 650 TV Line in Color
- OSD – On Screen Display – Easy camera setup
- 4-Axis Design : Flexible infrared coverage and easy accessto lens adjustment.
- 80ft Infrared Range / 35 IR LED
- 3D DNR (3D digital noise reduction) / Day & Night
- HLM (High Light Mask) / SENS-UP (Intensified Low Light)
- Auto White Balance (AWB) / Back Light Compensation (BLC) / Auto Gain Control (AGC)
- DC 12V
SPECIFICATIONS
| Resolution | 650 TV Line |
| Sensor | 1/3 inch Sony Super HAD II CCD |
| Total Pixels | 811(H) × 508(V) 410K pixels |
| Effective Pixels | 768(H) × 494(V) 380K pixels |
| Scanning System | 2:1 Interface |
| S/N (Y signal) | More than 50 dB (AGC Off) |
| Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz |
| Video Output | CVBS : 1.0 Vp-p Comp. 75Ω |
| Minimum Illumination | 0 Lux (IR On) |
| White Balance | ATW / AWC / PUSH / MANUAL |
| Electronic shutter speed | Auto / Manual (1/60sec ~ 1/100,000sec) |
| O.S.D | Built-in |
| Backlight Compensation | Low / Middle / High / HLM / Off Selectable |
| Gain Control | Low / Middle / High / Off Selectable |
| 3D DNR (3D digital noise reduction) | Low / Middle / High / Off Selectable |
| WDR (Long and Short exposure) | ON / OFF |
| SENS-UP | x2 ~ × 256 / OFF |
| Day & Night | Auto / Color / B&W / CDS |
| Privacy | On / Off (6 zone) |
| Motion Detection | On / Off |
| Mirror | Mirror / v-Flip / Rotate / Off |
| SYNC | Internal / Auto |
| Operating Temp. / Humidity | −10°C ~ +60°C(14°F ~ 140°F) / 30 ~ 80% RH |
| Storage Temp. / Humidity | −20°C ~ +80°C(−4°F ~ 176°F) / 20 ~ 90% RH |
| Power Source | DC 12V |
| Dimensions | 5.4"(Ø) × 4.2"(H) |
