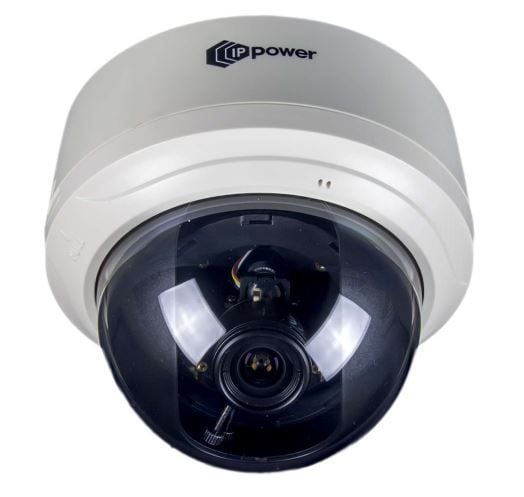

NDO-A22F-W 2MP Full-HD IP Indoor Dome Camera
In stock
SKU
cctv:ndoa22fw
$138.00
2 Mega-Pixel Resolution • 3.3~12mm Auto Iris Vari-focal Lens • Mechanical IR-Cut Filter • Micro SD Memory Slot Power over Ethernet (PoE) • ONVIF Compliant • H.264 • 3-Axis Movement • DC 12V
FEATURES
- Full HD IP plastic dome Camera
- Digital Clarity CMOS Imaging Technology
- 1/2.8" CMOS with Mechanical ICR
- Service BNC output
- Audio input and Audio output
- Micro SD memory slot
- Varifocal lens 3.3 ~ 12mm
- 3Axis movement
- DC12V / PoE
SPECIFICATIONS
| Sensor | Sony Exmorâ„¢ 1/2.8" |
| Max Resolution / FPS | 1920 × 1080 / 30fps |
| Min. illumination | 0.1Lux @ F1.2 (Color) (0 Lux IR LED On) |
| Day / Night | True Day / Night with ICR Filter. |
| IR LEDs | Works with external IR Lighting |
| Lens | 3.3 ~ 12mm Vari-focal IR Corrected DC Auto IRIS |
| Video Output | Internal Service RCA output for BNC Video with IP Address OSD |
| Electronic Shutter | Auto / User 1/5 ~ 1/50, 0000; 50/60Hz software selectable. |
| PARAMATERS | |
| Compression | H-264 High Profile (Support Baseline Profile) / MJPEG |
| Bit Rate (CBR/VBR) | Stream1 50Kbps – 12Mbps ; Stream2 10Kbps – 6Mbps ; Stream3 ( Fixed) |
| Quality Setting | 1 ~ 9 (9 Highest) |
| Multi- Streaming | User setting of Stream 1/2 at supported Resolutions, Stream3 MJPEG Stream |
| Brightness / Sharpness | Variable 0 ~ 100 / 0 ~ 100 |
| Gain Control | Auto / Fixed 8 ~ 102db |
| Orientation | Horizontal Mirror / Vertical Flip |
| Text Overlay | Time / Date / Camera / Custom OSD |
| Masking | 5 User defined masking areas < 8% of total picture |
| NETWORK | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| TCP/IP | IPv4 / IPv6 (DHCP / Fixed) |
| Compliance | Onvif v2.2 Profile-S Listed |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. User security authentication (Enabled / Disabled) |
| Web Language | English, Chinese, Russian, Polish, (European Languages coming 2013) |
| Recording Simultaneous. | Local Micro SD Memory, Remote FTP server, TCP/UDP CMS, RTSP connection (stream 1,2 or 3) |
| Network Protocols: | HTTP, TCP/IP, UDP/IP, RTSP, FTP, DHCP, NTP, PPoE, NTP. Unicast and Multicast supported. |
| Memory Card Slot | Internal memory card supports Max 64GB. Supports Edge Recording |
| AUDIO | |
| Input / Output | Inbuilt Microphone Cable 1 x RCA Input / 1 x RCA Output @ 1v Line Level |
| Audio Compression | G711 A-Law, G711 U-Law, RAW_PCM |
| GENERAL | |
| Power | 12V DC @ 300mA / PoE Class 3 on Ethernet |
| Temperature | Operating: 14°F to 131°F (−10°C to 55°C) Storage: -4°F to 140°F (−20°C to 60°C) |
| Operating Humidity | 10% ~ 85% RH |
| Approvals | CE / FCC / RoHS Compliant |
| Product Dimensions | 130 × 112 mm ( 5.1 × 4.4 ) |
