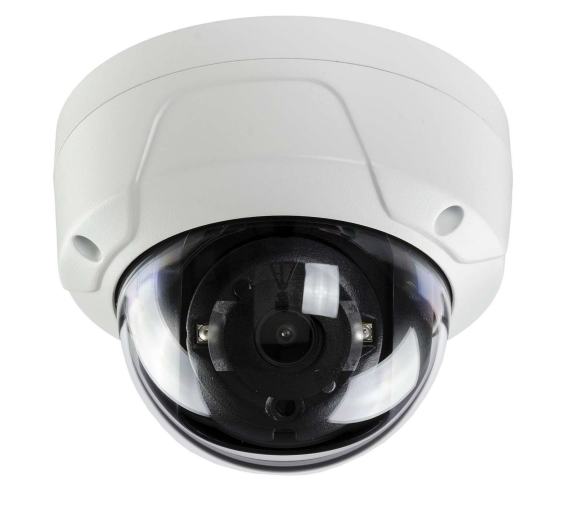

TIT-AC306D-OD4Z HD-TVI 5MP Dome Camera
In stock
SKU
cctv:titac306dod4z-unavailable
5MP HD-TVI IP67 Dome Camera with Vari-Focal Lens, Motorized 2.8~12mm, 120ft IR, 12V DC/24V AC Dual Power
SPECIFICATIONS
| Image Sensor | 1 / 3″ Progressive Scan CMOS |
| video FORMAT | PAL / NTSC |
| Effective Pixels | 2560(H)*1944(V) |
| Min. Illumination | 0.008 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter speed | 1/30s to 1/50,000s |
| Lens | 2.8 ~ 12mm @ F1.4, Angle of view: 102° – 31° |
| Angle Adjustment | Pan: 0 – 355°, Tilt: 0 – 80° |
| Day & Night | ICR |
| Wide dynamic range | DWDR |
| Video Frame Rate | 2560 × 1944@20fps |
| HD Video Output | 1 HD-TVI output |
| CVBS Output | N/A |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Camera ID | On/off (15 characters, position programmable) |
| AGC | Support |
| D/N Mode | Color/BW/Auto |
| Motion Detection | On/Off, maximum 4 zones |
| BLC | Support |
| Anti-flicker | On/off |
| Working Temperature / Humidity | −40°C – 60°C (−40°F – 140°F) Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC, 24 VAC |
| Power Consumption | Max. 6W |
| Ratings | IP67, IK10 |
| IR Range | Up to 120 ft |
| Dimensions | φ145.3 × 124.2 mm (φ5.72" × 4.89") |
| Weight | 880 g (3.53 lb) |
