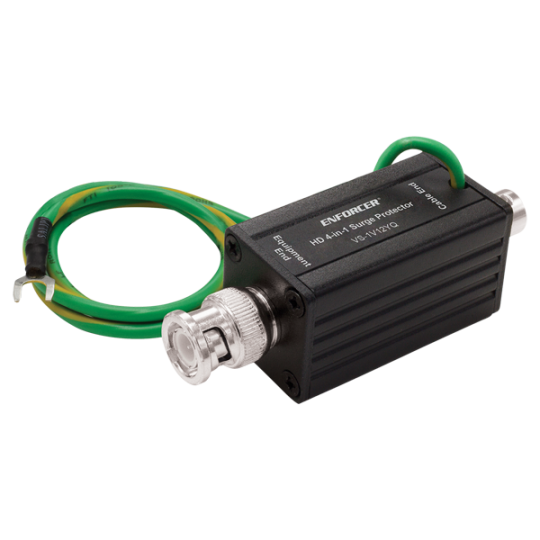

Seco-Larm VS-1V12YQ HD 4-in-1 Surge Protector

The ENFORCER HD 4-in-1 Surge Protector is a passive device that helps protect sensitive HD and Analog CCTV equipment from power surges. The device can be deployed in new installations or existing ones.

• Helps prevent damage to sensitive HD-TVI, HD-CVI, HD-AHD, and Analog CCTV cameras, DVRs, and switches
• Intercepts repeated surges and spikes that could damage HD-TVI, HD-CVI, HD-AHD, and Analog CCTV equipment
• Passive operation – no external power required
• Includes a 16″ grounding wire for convenient connection to ground

• Bandwidth	Up to 270MHz
  Maximum Input	6Vp-p
  Insertion Loss	0.8dB@42MHz
  Return Loss	16dB
  Frequency Response	Up to 3dB@10MHz
  Insulation Resistance	10,000MΩ
  Discharging Current	15kV
  Maximum Surge Voltage	4kV
  Surge Life	300 surges@200A
  Surge Protection	<1ns
  Surge Resistance	0Ω
  Connector- In	BNC Male (75Ω)
  Signal Passing Capability	Breakdown voltage: 6V, Clamping voltage: 25V
  Connector- Out	BNC Female (75Ω)
  Impedance	~75Ω (BNC-to-BNC)
  Cable Length	15-3/4″ (400mm)
  Material	Aluminum
  Operating Temperature	-40°~194° F (-40°~90° C)
  Dimensions	3-1/8″x1″x1″ (79x25x25 mm)
  Weight	2.3-oz (65g)
