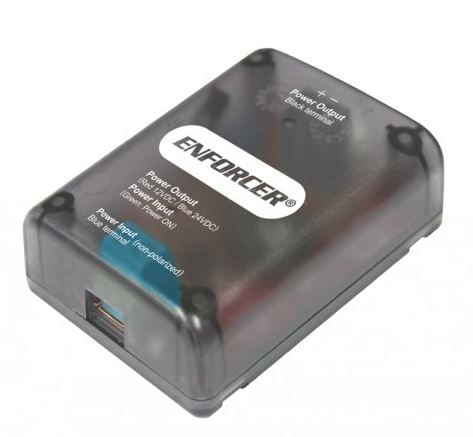

Seco-Larm ST-LA130-TTQ Power Converter to Step Down Voltage
In stock
SKU
secolarm:stla130ttq
$21.00
USB Keystone Charger
ENFORCER Power Converters “step down” voltage, converting low-voltage AC or DC into regulated DC outputs. These converters are useful for DC CCTV cameras, access controls, and many other applications where low-voltage DC output is required.
- Three models available, providing varying degrees of low-voltage DC output
- Built-in overload protection
- Regulated and filtered output
- Green LED indicates power input
| Output Current | 3A@12VDC, 1.5A@24VDC |
| Input Connector | Terminal block |
| Output Connector | Terminal block |
| Input Voltage | 18~24 VAC/VDC for 12VDC, 24~28 VAC or 26~28 VDC for 24VDC |
| Output Voltage | 12/24 VDC |
| LED Indicators | Green: Power input, Red: 12VDC Power output, Blue: 24VDC Power output |
| Current Protection | 3A PTC Fuse |
| Overheat Protection | Built-in |
| Overload Protection | Built-in |
| Dimensions | 2-1/2" x 1-7/8" x 15/16" (64 x 48 x 24 mm) |
