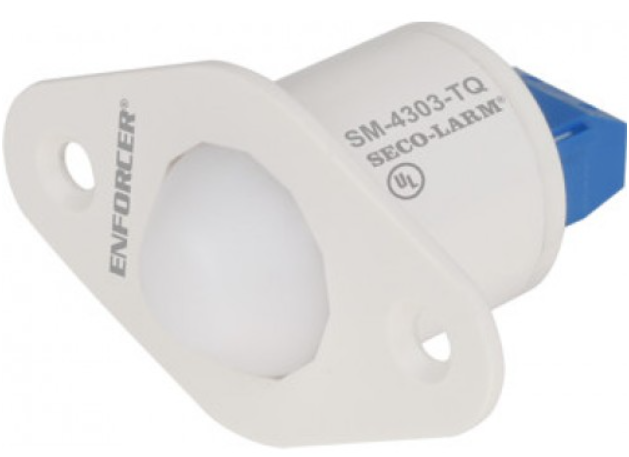

Seco-Larm SM-4303-TQ/W NO Rollerball Recessed Magnetic Contact
In stock
SKU
secolarm:sm4303tqw
$3.32
Circuit Type NO (normally open when roller is out)
Switch Travel 1/4" (6mm)
Switch Type Plunger
Color White
Material High-impact ABS plastic
Contacts Ruthenium on gold underplating
Contact Rating 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
Operating Temperature -68º~158º F (-20º~70º C)
Switch Cycles 50 Million (0.1mA@5VDC)
Switch Dimensions 25/32" x 3/4" x 1/4" (19.8 x 19 x 6.3 5 mm)
Magnet Type Rubber
Seco-Larm SM-4303-TQ/W NO Rollerball Recessed Magnetic Contact is available to buy in increments of 10
Rollerball, NO (normally open when roller is out) Circuit is made when plunger is pushed in.., with Screw Connectors, White
Used for protecting sliding doors and windows where space is limited.
Magnet and reed switch contained in housing.
Spacer and screws included.
Rollerball plunger travel is 1/4" (6mm).
360º Roller-ball.
Screw terminals.
Contact reed switch is SPST, ruthenium on gold under plating, which results in a long life.
For N.C. circuits.
Lifetime limited warranty.
