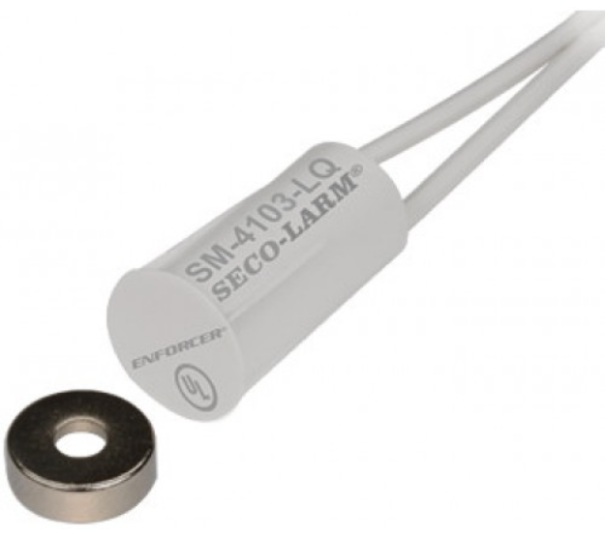

Seco-Larm SM-4103-LQ/W NO 3/8" Rare-Earth Recessed Magnetic Contact
In stock
SKU
secolarm:sm4103lqw
$3.15
NO (normally open with no magnet present)
Operation Gap 1/2" (13mm)
Color White
Material - Case High-impact ABS plastic
Material - Terminals 18" (46cm) leads
Contacts Ruthenium on gold underplating
Contact Rating 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
Operating Temperature -68º~158º F (-20º~70º C)
Switch Cycles 50 Million (0.1mA@5VDC)
Switch Dimensions 9/16" x 7/16" x 3/8" (14.5 x 11 x 9 mm)
Magnet Type Rare-earth Neodymium alloy
Seco-Larm SM-4103-LQ/W NO 3/8" Rare-Earth Recessed Magnetic Contact is available to buy in increments of 10
1/2" (13mm) Gap, NO (normally open with no magnet present), White, with 18" (46cm) Leads and 9/16" (14.5mm) switch
Used for protecting sliding doors and windows where space is limited.
3/8" Press-fit with stubby 9/16" switch.
Rare-earth magnet with nickel plating to protect against chipping and corrosion.
High-impact ABS plastic.
Miniature size assures ease of concealment.
Switch and magnet have ribs for securing in holes.
18" (46cm) leads.
Contact reed switch is SPST, ruthenium on gold under-plating, which results in a long life.
For N.C. circuits.
1/2" (13mm) Gap.
Lifetime limited warranty.
