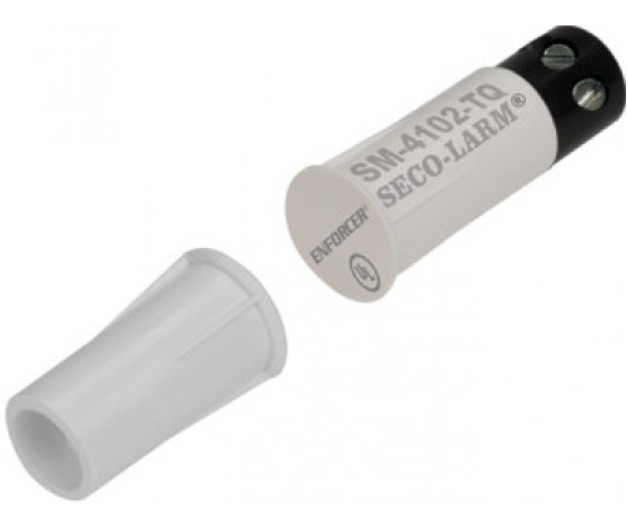

Seco-Larm SM-4102-TQ/W NO 3/8" Screw-Terminal Recessed Contact
In stock
SKU
secolarm:sm4102tqw
$3.36
NO (normally open with no magnet present)
Operation Gap 1", (25mm)
Color White
Material - Case High-impact ABS plastic
Contacts Gold-plated
Contact Rating 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
Operating Temperature -68º~158º F (-20º~70º C)
Switch Cycles 50 Million (0.1mA@5VDC)
Switch Dimensions 1-1/8" x 7/16" x 3/8" (28 x 11 x 9 mm)
Magnet Dimensions 3/4" x 7/16" x 3/8" (19 x 11 x 9 mm)
Magnet Type Rare-earth Neodymium
Seco-Larm SM-4102-TQ/W NO 3/8" Screw-Terminal Recessed Contact is available to buy in increments of 10
1" (25 mm) Gap, NO (normally open with no magnet present), White
Used for protecting sliding doors and windows where space is limited.
Gold-plated terminals for longer life and reliability.
Screw terminals.
High-impact ABS plastic.
Miniature size assures ease of concealment.
Switch and magnet have ribs for securing in holes.
3/8" Press-fit.
Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life.
1" (25mm) Gap.
Lifetime limited warranty.
