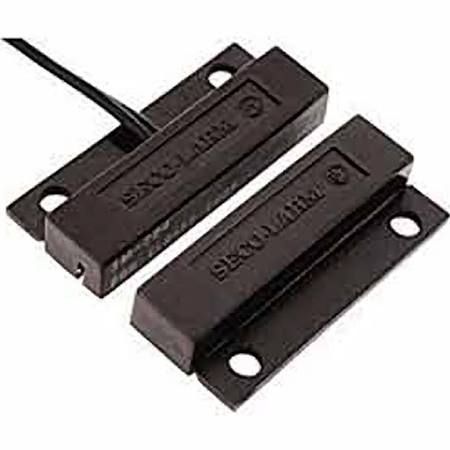

Seco-Larm SM-204Q/BR NO Miniature Surface-Mount Magnetic Contact
In stock
SKU
secolarm:sm204qbr
$3.38
Circuit Type NO (normally open with no magnet present) Operation Gap 1" (25mm) Terminals 15" (38cm) leads from center Color Brown Material - Case High-impact ABS plastic Contacts Deactivated rhodium on gold under-plating Contact Rating 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max) Operating Temperature -15º~+160º F (-25º~70º C) Switch Cycles 50 Million (0.1mA@5VDC) Switch Dimensions 1-3/8" x 3/8" x 1/4" (35 x 10 x 6 mm) Magnet Dimensions 1-3/8" x 3/8" x 1/4" (35 x 10 x 6 mm) Magnet Type Alnico 5
(normally open with no magnet present) 1" (25mm) Gap, Center Leads
Miniature "flange type" surface-mount magnetic contacts perfect for sliding doors and windows where space is limited.
Screw or adhesive mount (adhesive backing tape included).
Mounting flange breaks off for extra miniature size.
High-impact weatherproof ABS plastic case.
Contact reed switch is SPST, deactivated rhodium on gold under-plating, which results in a long life.
1" (25mm) Gap.
15" (38cm) leads extend from center of switch.
For N.C. circuits.
Mounting screws included.
Lifetime limited warranty.
White also available!
