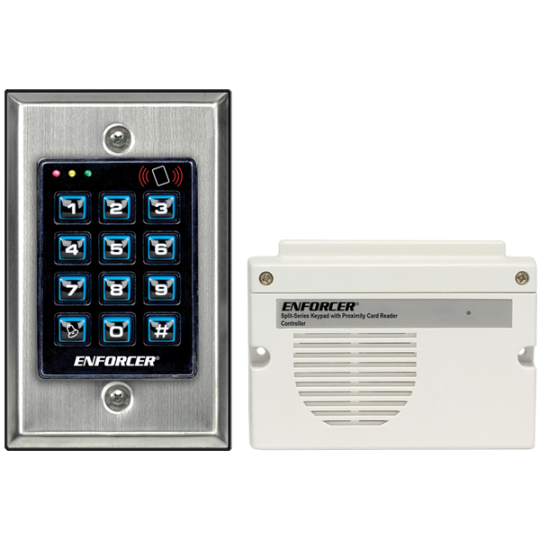

Seco-Larm SK-4131-SPSQ Access Control Keypad,Split Series

This 3-in-1 (card, code, or both) keypad features rugged vandal-resistant construction with a heavy-duty stainless-steel faceplate and a coated steel backing to withstand the elements.

• Split series installation for added security – keypad and controller are separate thereby preventing access via keypad tampering
• 12~24 VDC Auto-adjusting operation
• Up to 1,000 possible user codes (000~999) and/or proximity cards for output #1, 100 (001~100) for output #2, 100 (001~100) for output #3
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
  • Output #1: Form C relay, 5A@24VDC max.
  • Output #2: Form C relay, 1A@24VDC max.
  • Output #3: Form C relay, 1A@24VDC max.
• Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output: N.C. Dry contact, 50mA@24VDC max.
• Keypad illuminates when a button is pressed; backlight can be programmable for FULL or AUTO in standby mode
• Built-in door chime
• Built in current limited (750mA) power source for keypad for added security
• Keypad active, alarm, duress, and interlock output: Transistor ground, 100mA@24VDC max.
• Keypad mounts to a standard single-gang back box (surface-mount back box included)
• All features are programmed directly from the keypad: No need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Up to 50 (01~50) duress codes for output #1, 10 (01~09) for output #2, 10 (01~09) for output #3
• Programmable egress input with optional warning alarm and delayed egress
• Door sensor input for anti-tailgating operation
• Interlocking input for connecting to a second keypad for mantrap applications
• Simple three wire connection between keypad and controller

• Type	Split-Series Keypad with Proximity Card Reader
  Operating Voltage	12~24 VDC
  Current Draw – Standby	88mA@12VDC
  Current Draw – Keypress	115mA@12VDC
  Current Draw – Output 1 Active	115mA@12VDC
  Current Draw – Output 1 & 2 Active	128mA@12VDC
  Current Draw – Output 1, 2 & 3 Active	138mA@12VDC
  Current Draw – Total Max	220mA@12VDC
  Output 1	Form C – 5A@24VDC
  Output 2	Form C – 1A@24VDC
  Output 3	Form C – 1A@24VDC
  Output – Alarm	100mA@24VDC
  Output – Key Active	100mA@24VDC
  Output – Duress	100mA@24VDC
  Output – Interlock	100mA@24VDC
  Output- Tamper	50mA@24VDC
  Input – Egress	N.O. Ground
  Input – Door Sensor	N.C. Ground
  Input – Door Inhibit	N.O. Ground
  Input – Doorbell	N.O. Ground
  Input – Tamper	N.C. Ground
  Proximity Reader Frequency	125kHz (EM125)
  Proximity Reader Sensing Distance	1-1/2″ (38mm)
  Operating Temperature	4°~158°F (-20°~70°C)
  Operating Humidity	5~95% (non-condensing)
  Dimensions	Keypad – 4-5/8″x2-7/8″x1-1/2″ (117x73x38 mm), Controller – 3-7/16″x4-3/4″x1-1/4″ (87x120x32 mm)
  Weight	Keypad – 6.3-oz (180g), Controller – 8.8-oz (250g)
