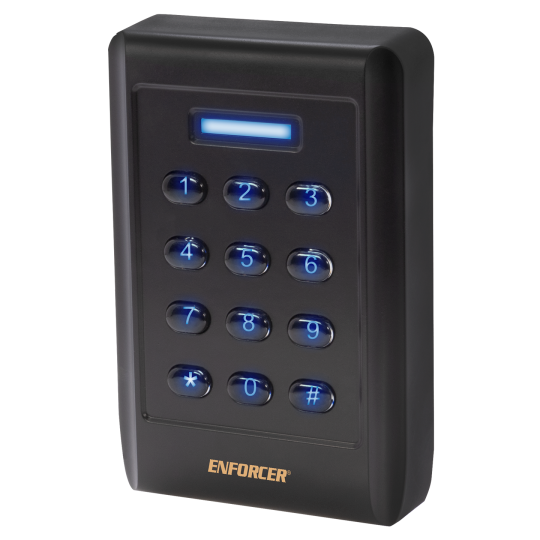

Seco-Larm SK-1322-SPQ Weatherproof Keypad with Proximity Reader

ENFORCER SK-1322-SPQ Weatherproof Keypad with Proximity Reader is a dual-output access control keypad that supports up to 1,010 users and can be mounted in a standard single-gang back box. It includes a tamper alarm and a backlit keypad for ease of use at night or in dark areas.

• 12~24 VAC/VDC operation
• 1,010 User codes
• 2 Form C relays, each rated 1A@30VDC
• Each relay output time is programmable from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs for exiting the premises without keying in the code
• Backlit keys for easy nighttime use
• Can be mounted to a single-gang back box
• Door sensor input for anti-tailgating operation
• All features are programmed directly from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper for added security
• Circuitry is fully sealed with epoxy for outdoor use
• IP65 weatherproof rating, ABS plastic housing
• Built-in proximity card reader

• Operating Voltage	12~24 VAC/VDC
  Current Draw	Standby: 64mA@12VDC 1 Relay active: 92mA@12VDC 2 Relays active: 120mA@12VDC
  Relay Outputs	Output #1: 1A@30VDC, Form C, NO/NC/COM Output #2: 1A@30VDC, Form C, NO/NC/COM
  Egress input	Input #1: N.O. Ground Input #2: N.O. Ground
  Door sensor input	N.C. Ground
  Tamper sensor	Optical
  Keypad LED life	60,000 hours (over 6.8 years)
  Proximity reader	Frequency: 125kHz Distance: 2″ (5cm)
  Operating temperature	-4°~122° F (-20°~50° C)
  Dimensions	2-15/16″x4-1/2″x7/8″ (75x115x22 mm)
  Weight	9-oz (240g)
