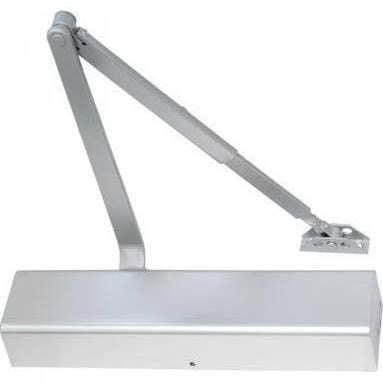

Seco-Larm SD-C101-SBAQ Door Closer - Heavy-Duty
In stock
SKU
secolarm:sdc101sbaq
$61.07
Closing Force Size 1~6
Closing Force Adjustment Adjustment screw
Grade 1 Construction Yes
Max. Door Width 60” (1500mm)
Max. Door Weight 330-lb (150kg)
Adjustable Closing Speed via Closing valve
Number of Valves 1 Sweep, 1 Latch, 1 Back check
Second Closing Range Yes 15° - 0°
End Latch Yes by valve
Backcheck Yes
Adjustment Valve Yes
Non Handed Design Yes
Max Door Opening Angle-Hinge Side 180°
Fire and Smoke Check Doors Yes
Length 12-13/16” (325mm)
Width 1-7/8” (47mm)
Height 2-1/32” (51.5mm)
Weight 4-lb (1.83kg)
Footprint 12”x3/4” (304.8x19 mm)
Installation Tri-Pack-Regular, Top Jamb and Parallel Arms
Cover Plastic
Finish Silver
Parallel Arm Accessories Yes
Construction Detail Cast aluminum body, steel arm
Door Weight 45~330-lb (20~150kg)
Heavy-duty closer for commercial use.
Cast aluminum body & steel arm.
Adjustable sweep & latch speed.
Adjustable back check.
Adjustable spring force (1~6).
Non-handed installation.
Tested to ANSI 156.4 (2 million life cycles).
Silver finish.
Door width: 32”~60” (800~1500mm).
Door weight: 45~330-lb (20~150kg).
Decorative plastic cover
Includes parallel arm bracket.
5 Year warranty
| Insurance Price Type | Fixed |
|---|
