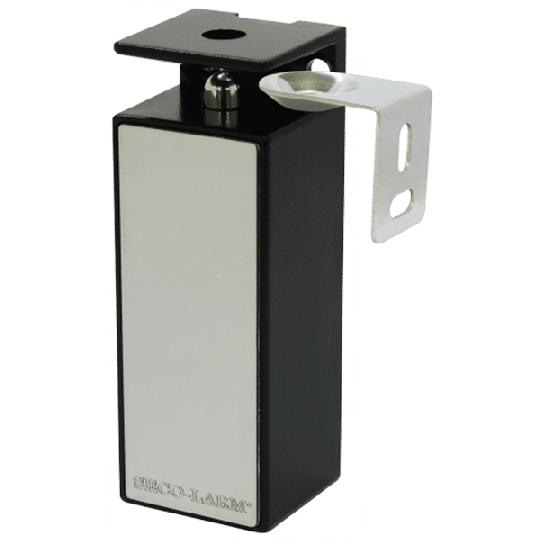

Seco-Larm SD-997C-GCQ Electric Deadbolt

The SECO-LARM Electric Deadbolt Cabinet Lock provides security for lockers, cabinets, cases, and drawers. Dual voltage settings and on-site reversible fail-safe/fail-secure operation offers flexibility and easy installation. The built-in lock status sensor allows for monitoring whether the cabinet doors are locked.

• Electronically secure lockers, cabinets, cases, and drawers
• Lock status sensor allows for monitoring whether doors or drawers are locked
• Selectable fail-safe/fail-secure operation
• Operating voltage: 12/24 VDC
• Current draw: 300mA@12VDC and 150mA@24VDC
• Mounting hardware included

• Operation	Fail-safe / Fail-secure
  Contact Switch	NO/NC.
  Current Draw	300mA@12VDC, 150mA@24VDC
  Lock Status Rating	1A@30VDC
  Lock status	Micro-switch
  Operating Voltage	12/24 VDC
  Door Status	Reed switch, 10W (Max)
  Door Status Max Switching Contact	0.5A
  Dimensions	3-1/4” x 1-3/16” x 1-1/8” (82x30x28 mm)
