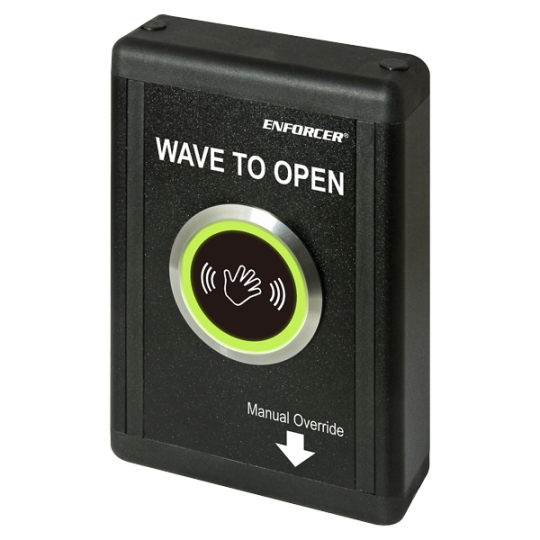

Seco-Larm SD-9773-KNEVQ Surface-Mount Wave

The ENFORCER Surface-Mount Wave-to-Open Sensor with Manual Override Button is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices. A manual override allows for operation if the sensor is disabled.

• ETL, Conforms to UL Std. 294
• Adjustable sensor range up to 6″ (15cm)
• 1A relay, adjustable trigger duration 0.5~30 seconds or toggle
• LED illuminated sensor area for easy identification
• Selectable LED colors (turns from red to green or green to red) when sensor is activated
• Aluminum alloy and ABS plastic housing
• IP54 Weather-resistant for outdoor use

• Operating Voltage	12~24 VDC
  Current Draw	Standby (red): 20mA@12VDC / 26mA@24VDC Triggered (green): 26mA@12VDC / 32mA@24VDC Standby (green):16mA@12VDC / 20mA@24VDC Triggered (red): 31mA@12VDC / 39mA@24VDC
  Relay Type	SPDT dry contact, 1A@24VDC
  IP Rating	Weatherproof IP54
  Response Time	10ms
  LEDs – Standby	Red (reversible to green)
  LEDs – Triggered	Green (reversible to red)
  Output Time	0.5~30 s, toggle
  Range	1-9/16″~6″ (4~15 cm)
  Operating Temperature	-4°~131° F (-20°~55° C)
  Weight	9.5-oz (270g)
  Dimensions	3-1/8″x 4-1/2″x1-1/8″ (80x115x28mm)
