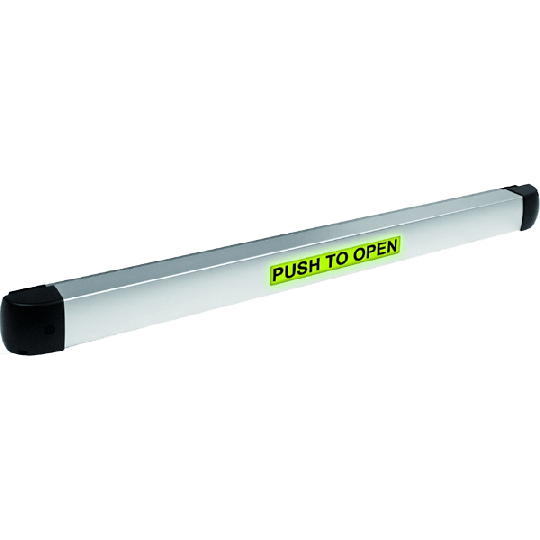

Seco-Larm SD-961A-36SLQ Illuminated Push

The ENFORCER Illuminated Push-to-Open Bar works with an external electric strike or maglock to provide egress from a protected area. It can work in stand-alone mode or as part of an access control system, but also can be locked open by key. Buzzer, output timing, and LED function and colors are also customizable.

• Provides convenient on-door egress
• LED makes it easy to see the status
• Can be stand-alone or connected to an access control system
• Dogging – standard dogging with hex key
• For 36″ doors – actual length: 33⁷/₁₆” (85cm)
• Can be cut to fit smaller doors, minimum 23⁵/₈” (60cm)
• Two built-in non-latching (momentary), dual-contact switches (NO/NC/COM) rated at ≤5A@230VAC, adjustable 0.5~60 sec
• Large LED shows red in standby and green when triggered, but is programmable red/green/blue by an access control panel
• Blinking LED and buzzer programmable for relock warning
• Built-in buzzer indicates unlocked (selectable, up to 92dB)

• Operating voltage	12~24 VDC
  Power consumption	180mA@12VDC, 140mA@24VDC (max.)
  Contact load	≤5A@230VAC
  Outputs	NO/NC/COM x2
  Trigger duration	0.5~60 seconds (adjustable) or dogged open
  Buzzer	Up to 92dB (adjustable)
  LED Indicators – Colors	Stand-alone red/green, Controlled red/green/blue
  LED Indicators – Size	8-1/4″x1″ (210×25 mm)
  Door width	36″ (91.4cm), minimum 23-5/8″ (60cm)
  Door Size	32°~150° F (0°~70° C)
  Dimensions	33-7/16″x2-3/8″x2-3/8″ (850x61x61 mm)
  Weight	4-lb 10-oz (2.1kg)
