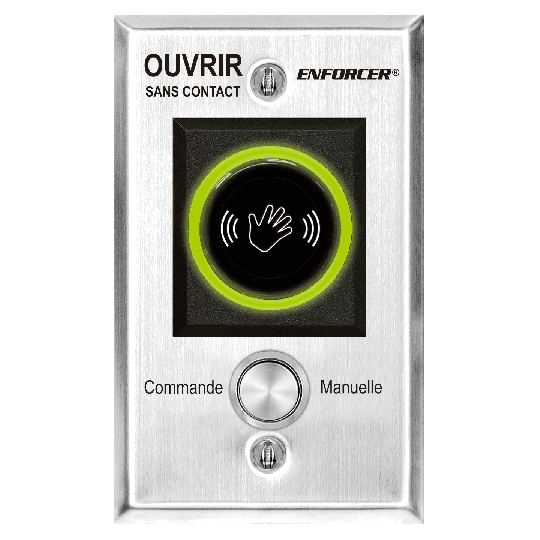

Seco-Larm SD-927PKC-NFVQ Wave-To-Open Sensor

The ENFORCER contactless aperture request detector uses infrared technology to allow the user to exit a protected place by an access control system simply with a hand gesture. As the function is contactless, this detector is ideal for hospitals, medical centers, laboratories, clean rooms, schools, factories, and offices. Added a manual cancel button for the SD-927PKC-NFVQ.

• Detection range up to 2-3/8″~8″ (6~20 cm)
• Single stainless steel plate
• 3A relay, adjustable by 0.5~30 seconds, rocker or as long as the hand is near the sensor
• Screwless terminal block with fast connection
• LED ring illuminated detector for easy identification.
• Selectable two-tone LED ring (from red to green, or from green to red) to indicate that the detector has been triggered.
• Adding a manual cancel button as an auxiliary device for the sensoror

• Operating voltage	12~24 VAC/VDC
  Current Draw	120mA@12VDC
  Relay type	Form C dry contact, 3A@24VDC
  Override button	Switching capacity: 3A@24VDC Mechanical life: 500,000 cycles
  Response time	10ms
  LEDs	Standby: Red Triggered: Green
  Output duration	Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
  Sensing range	Adjustable, 2-3/8″~8″ (6-20 cm)
  Operating Temperature	-4°~131° F (-20°~55° C)
  Dimensions	4-1/2″ x 2-3/4″ x 1-5/16″ (115 x 70 x 33.5 mm)
  Weight	3.9-oz (110g)
