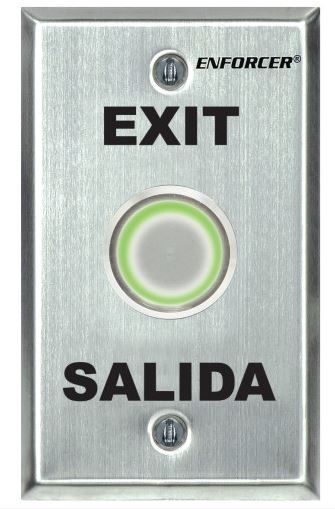

Seco-Larm SD-7257-SSTQ Dual-Color RTE Plate with Buzzer and Timer
In stock
SKU
secolarm:sd7257sstq
$70.81
Illuminated Mullion Surface-Mount RTE Bar
The ENFORCER Dual-Color Vandal-Resistant Request-to-Exit Plate with Buzzer and Timer uses a stainless steel vandal-resistant button, illuminated by a circular perimeter LED, and includes a built-in adjustable buzzer and timer. For indoor use only.
• 12~24 VDC Operation
• Operating modes: Timed (0.5~60 s), toggle, and momentary
• Pushbutton can still operate as a momentary mechanical switch
  when power is lost
•  Buzzer volume: 80dB max., adjustable
•  Programmable reminder function, LED flashes and buzzer sounds for last 4     seconds of timed output
•  "EXIT" and "SALIDA" silk-screened on plate
•  Vandal-resistant, ø1-3/16" (ø30mm) dual-color, illuminated pushbutton
•  LED colors: Red on standby, green on activation
Â
Â
Â
| Faceplate | Single-gang |
| Button | Vandal-resistant with dual-color circular perimeter LED |
| LED colors | Standby: Red Active: Green |
| Operating voltage | 12~24 VDC |
| Contact rating | 2A@24VAC |
| Relay Output Trimpot | Full left: Momentary (default), Middle: Timer setting, 0.5~60 s, adjustable Full right: Toggle |
| Electrical configuration | NO/NC |
| Reminder Jumper | ON: LED will flash and buzzer will sound 4 seconds before output stops (default) OFF: Green LED and buzzer will sound during activation |
| Operating temperature | 32°~167° F (0°~75° C) |
| Dimensions | 2-3/4"x4-1/2"x1-7/16" (70x114x36 mm) |
| Weight | 3.4-oz (98g) |
| Connector type | 6-Pin wafer |
| Buzzer Sound Level | 80dB@3ft max., adjustable: off / low / med. / high (default) |
Â
