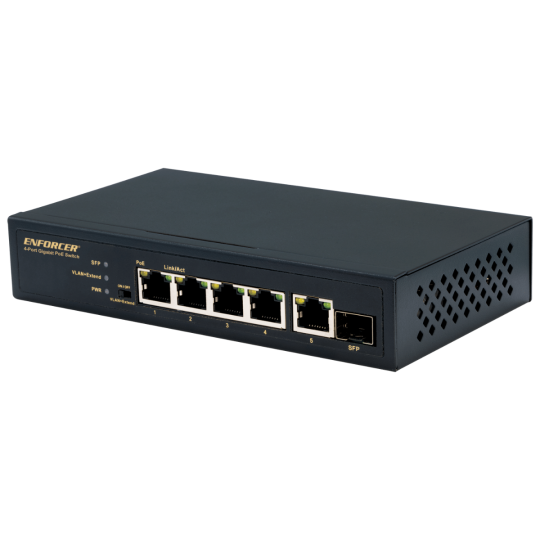

Seco-Larm NS-504UT-GAQ 4-Port Gigabit Unmanaged

ENFORCER Unmanaged PoE+ Switch provides Ethernet and power to PoE devices such as IP cameras, IP access control, IP speakers/intercoms, IP telephony, etc. Fast packet forwarding capability and extra backplane bandwidth ensure clear images at fast transmission speeds for video, making them well-suited for HD IP CCTV installations.

• Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, IP speakers/intercoms, VOIP, etc.
• Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission
• Easy plug-and-play installation
• Supports up to 10/100/1000BASE-T
• IEEE 802.3x flow control

• Operating voltage	100~240 VAC
  Power consumption	<5W
  Ports	4 Downlink, 1 uplink, 1 SFP
  Ethernet speed	10/100/1000Mbps (uplink, 1000Mbps)
  Ethernet standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
  Transmission distance	328ft (100m)‡
  PoE capacity	60W
  Switching capacity	12Gbps
  Transfer rate	10Mbps:14,880pps 100Mbps:148,800 1000Mbps:1,488,000
  MAC Address table	2K
  LED Indicators	Connection/transmission and PoE for each port, power
  Operating humidity	0~85% non-condensing
  Operating temperature	14°~122° F (-10°~40° C)
  Dimensions	6-5/8″x1-1/4″x3-11/16″ (168x32x94 mm)
  Weight	1-lb 5-oz (480g)
