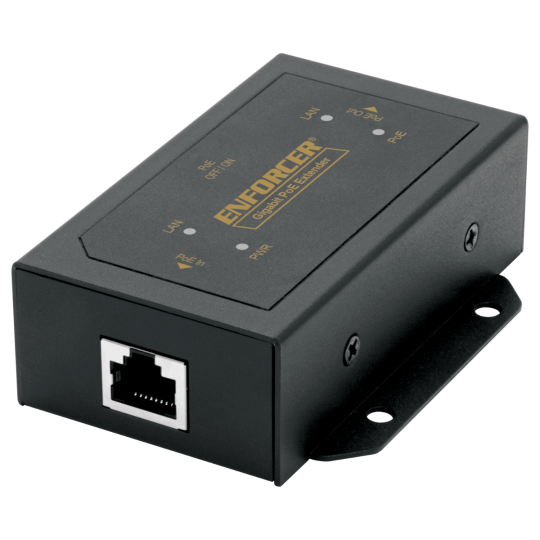

Seco-Larm NR-P102E-TQ 1-Port Gigabit PoE

The ENFORCER Gigabit PoE+ Extender connects PoE cameras, IP access control, IP speakers/intercoms, IP telephony, or other PoE devices using a single Cat5e or Cat6 cable to extend data and power.

• Extends the range of PoE devices an additional 328ft (100m) with Cat5e cables or higher
• Maximum extended range of up to 984ft (300m) using two extenders
• Connects 10/100/1000BASE-T PoE devices including IP cameras, IP access control, VOIP, IP speakers/intercoms, etc.
• Supports up to gigabit transmission rates
• Passive operation – no external power required and easy plug-and-play installation
• Automatically detects PoE equipment and protects from damage due to faulty installation
• Surge protection for both data and power ports

• Connections	PoE In: 1x Shielded RJ45 PoE Out: 1x Shielded RJ45
  Transmission range – 656ft (200m)	Power Input: 15W, Power Output: 11.1W Power Input: 30W, Power Output: 19W Power Input: 60W, Power Output: 40W Power Input: 90W, Power Output: 48W
  Transmission range – 948ft (300m)	Power Input: 15W, Power Output: 6.8W Power Input: 30W, Power Output: 15W Power Input: 60W, Power Output: 30W Power Input: 90W, Power Output: 30W
  Data link	Both pin 1/2, 3/6 and 4/5, 7/8
  Power link	Pin 1/2 (–), 3/6 (+) and 4/5 (+), 7/8 (–), up to 85W
  Network cables	Shielded Cat-5e or higher
  Ethernet speed	10/100/1000 Mbps half/full duplex
  PoE standard	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (4 pairs, 90W)
  LED Indicators	Power: Green = PoE power in PoE: Green = PoE switch on Data link / Data transmit: LAN x2 green (steady = link, flashing = transmit)
  Operating humidity	90% (maximum, non-condensing)
  Operating temperature	14°~122° F (-10°~50° C)
  Dimensions	3-9/16″x2-1/16″x1-1/8″ (90x52x29 mm)
  Weight	7.2-oz (204g)
