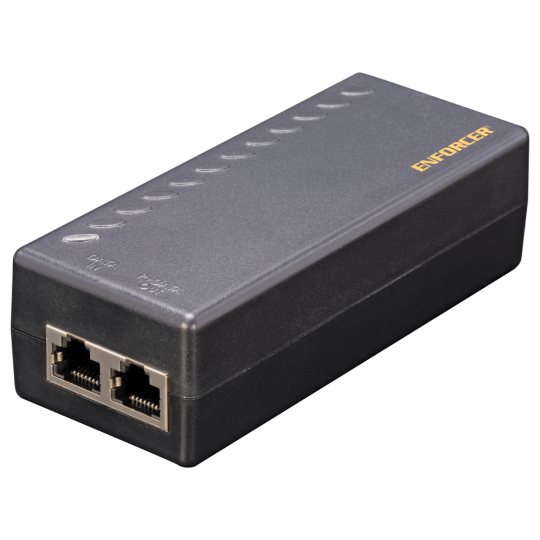

Seco-Larm NJ-A301U-T6AQ power supply Injector

ENFORCER 30W PoE+ Injector converts 100~240 VAC to low voltage DC and supplies power to IP cameras, IP access control, and other PoE devices using Cat5e or Cat6 cables. This allows you to supply power to IEEE 802.3af/at compliant network accessories without an external power supply and provides a compact, reliable, and affordable solution to your networking infrastructure.

• Supports up to 30W on 2-pairs
• LED indicates power supply input and PoE output
• Internal AC/DC converter
• Easy Plug-and-Play installation
• Connects 10/100/1000BASE-T PoE devices
• Overcurrent, overload, overvoltage, and anti-interference protection
• Supports Cat5e network cables and higher
• Compliant with IEEE 802.3af/at standard

• Operating Voltage	100~240 VAC
  Connections	Data In: 1x Shielded RJ45 PoE Out: 1x Shielded RJ45
  PoE Power output	Up to 52VDC, 30W
  Power link	Pin 1/2 (–), 3/6 (+) up to 30W
  Network cables	Cat5e or higher
  Protection	Overcurrent, overload, overvoltage, anti-interference
  Ethernet speed	10/100/1000 Mbps
  LED Indicators	Green – power in, red – power out
  Operating humidity	90% (Maximum, non-condensing)
  Operating temperature	14°~104° F (-10°~°40 C)
  Dimensions	4-3/4″x2″x1-7/16″ (121x50x36 mm)
