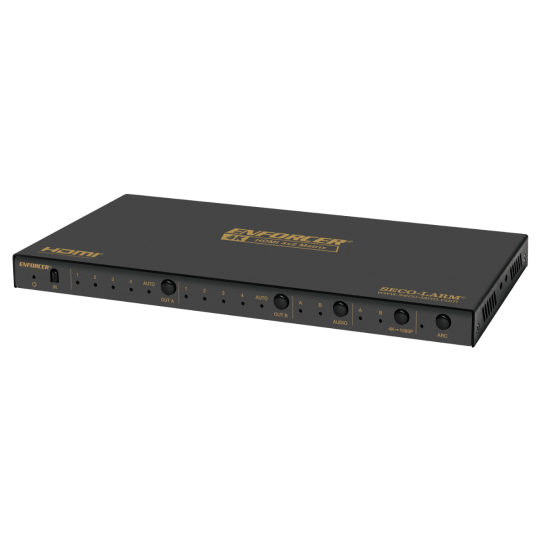

Seco-Larm MVM-AH42-42Q 4K Matrix

The ENFORCER 4K HDMI 4×2 Matrix can switch 4 HDMI sources to 2 HDMI displays. It supports up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2 and can extract HDMI source audio to optical and analog L/R output. It can downscale to 1080p for displays that cannot display 4K. It supports ARC and EDID over 18Gbps bandwidth and can be controlled by buttons on the front or with an included remote control.

• 4 HDMI inputs and 2 HDMI outputs – each output can display any of the four sources
• Supports 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz, all HDMI 3D formats and more
• Supports 18Gbps video bandwidth uncompressed
• Both outputs can downscale to 1080p if needed
• Supports HDR10+, Dolby Vision, and HLG
• Supports advanced EDID management, including AUTO, COPY, and STD
• Supports Audio Return Channel (ARC)
• Easy control via buttons on front or an included remote control

• Input video signal	3.3V
  Video formats supported	HDMI 2.0, HDCP
  Audio formats supported	PCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTX-96/24, DTS High Res, DTS HD Master, DSD
  Output video	HDMI
  Resolution supported	Up to 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz, all HDMI 3D, etc.
  Video amplifier bandwidth	18Gbps
  Video connector	Input: HDMI Type A 19-pin female Output: HDMI Type A 19-pin female
  Maximum cable length	Input: 26ft (8m) Output: 9.8ft (3m)
  Operating voltage	12VDC
  Power supply	1A@12VDC Power adapter
  ESD protection (human body model)	±8kV (air-gap discharge), ±4kV (contact discharge)
  Current draw	320mA@12VDC
  Operating humidity	20~90% (non-condensing)
  Operating temperature	32°~104° F (0°~40° C)
  Dimensions	9-7/8″x13/16″x4-1/8″ (251x20x105 mm)
  Weight	1-lb 6-oz (620g)
