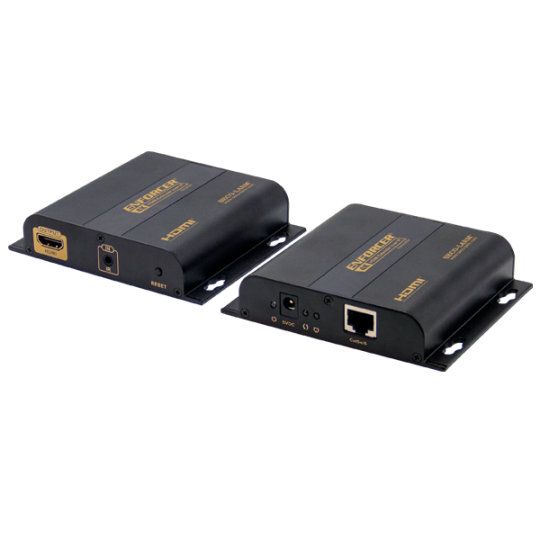

Seco-Larm MVE-AHMPM-41NQ 4K HDMI Extender

The MVE-AHMPM-41NQ 4K HDMI Extender over IP extends the range of HDMI signals by using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. The 4K HDMI Extender over IP supports IR signals using the included IR transmitter and receiver, allowing remote control use from one end of an installation to control a device such as a media player or DVD player at the opposite end of the installation. The MVE-AHMPM-41NQ supports One-to-One, and One-to-Many installations, allowing the connection of multiple units for extended range.

• Extends HDMI over one Cat5e/6 cable or IP network
• Supports One-to-One, and One-to-Many applications
• Power adapters and IR hardware included
• IR Support (20kHz~60kHz)
• HDCP Compliant
• Receiver (MVE-AHMPM-41NRQ) also available separately

• Maximum video resolution	4K@30Hz
  Deep color	24-bit
  Video formats supported	DTV/HDTV: 480i, 480p,576i,576p,720p,1080i, 1080p, 4K@30Hz
  Range 4K – Cat5	262ft (80m)
  Range 4K – Cat5e	328ft (100m)
  Range 4K – Cat6	393ft (120m)
  IP addressing	Static
  IR frequency	20kHz~60kHz
  Operating voltage	5VDC
  Power supply	2A@5VDC
  Power consumption	Transmitter: 6W Receiver: 4W
  Operating temperature	32°~140° F (0°~60° C)
  Dimensions	4-7/16″x15/16″x3-11/16″ (112x23x94 mm)
  Weight	5.9-oz (170g)
