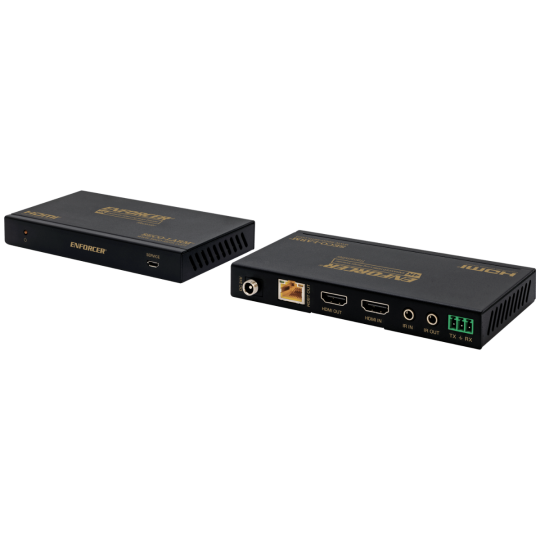

Seco-Larm MVE-AH1H1-42YQ 4K ENHANCED HDMI Long Range Extender

The ENFORCER 4K ENHANCED HDMI Long Range Extender extends the range of HDMI signals by using an active transmitter and receiver to send video and audio, RS-232, and bi-directional IR over a single Cat5e/6 cable. It can send 1080p signals up to 492ft (150m) between the two units with zero signal loss, while 4K2K/UHD HDMI signals can be transmitted up to 394ft (120m). A single power supply can power both devices from either end of the installation.

• Extends 1080p up to 492ft (150m) and 4K2K up to 394ft (120m)
• Supports resolutions from 480i to 4K2K/UHD
• Supports 18Gbps video bandwidth
• Plug and play operation – comes as a complete set
• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Transmitter includes an HDMI loop output
• Analog stereo output on receiver
• Bi-directional IR, RS-232, and CEC pass-through
• Supports HDF, HDR10+, Dolby Vision, and HLG
• Includes one 24VDC power supply – set can be powered at either the transmitter or receiver

• Input video signal	3.3V
  Input DDC signal	5Vp-p (TTL)
  Maximum single link range	4K2K@60Hz
  Deep color	48-bit
  Video formats supported	All HDMI 3D, HDCP 2.2
  Audio formats supported	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  L/R Audio formats	PCM 2.0
  Output video	HDMI
  Resolutions supported	4K2K@50/60Hz, 4K2K@30Hz, 1080p, 1080i, 720p, 720i, 480p, 480i
  Range	1080p: 492ft (150m) , 4Kx2K: 394ft (120m)
  Video amplifier bandwidth	18Gbps
  Video input connector	HDMI Type A 19-pin female
  Max. HDMI cable length (IN/OUT)	4K@60Hz, 16′ (5m) / 4K@30Hz, 32′ (10m) / 1080p@60Hz, 50′ (15m)
  Cat5e/6 wiring standard	T568-B
  IR Pass-through	20~60kHz
  Operating voltage	24VDC
  Power supply	1A@24VDC (1 adapter)
  ESD protection (human body model)	±8kV (air-gap discharge), ±4kV (contact discharge)
  Current draw (both units total)	390mA
  Operating humidity	20~90% (non-condensing)
  Operating temperature	32°~104° F (0°~40° C)
  Dimensions	5-1/2″x11/16″x2-9/16″ (140x18x65 mm)
  Weight	Transmitter 5.6-oz (160g), Receiver 5.5-oz (155g)
