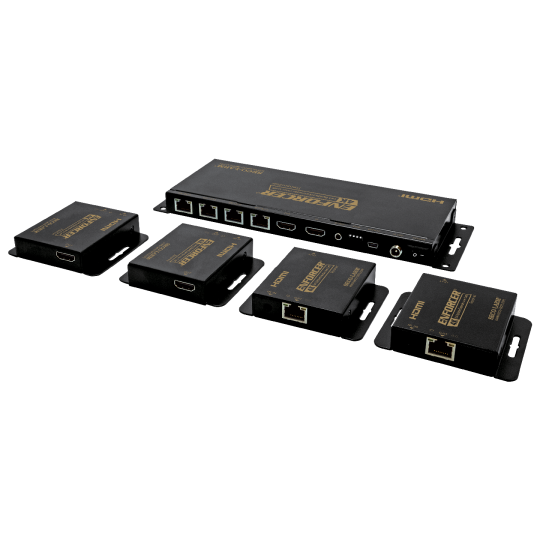

Seco-Larm MVE-AH1E4-42NQ 4K HDMI Splitter/Extender

The ENFORCER 4K HDMI® 1×4 Splitter/Extender over Cat6 extends the range of traditional HDMI® cabling methods by using an active transmitter and 4 receivers to send video and audio over Cat6. HDMI formats as large as 4K can be transmitted up to 230ft (70m) between the units with zero signal loss by using integrated circuits in the receivers and transmitter.

• Signal Strength – Active operation ensures signal strength remains strong over the entire cable length.
• Distance – The 4K HDMI 1×4 Splitter/Extender over Cat6 is capable of providing a clear HDMI signal up to 131ft (40m) at 4K resolution or 230ft (70m) at 1080p resolution.
• Formats Supported – The 4K HDMI 1×4 Splitter/Extender over Cat6 supports both progressive and interlaced formats: 4K@30Hz/1080p/1080i/720p/576p/480p/480i.
• Plug and Play – The 4K HDMI 1×4 Splitter/Extender over Cat6 comes as a complete set consisting of a transmitter and 4 receivers, power supply, and IR dongles.
• Zero Signal Loss – Integrated circuits in the transmitter and receivers clean, buffer, and amplify the HDMI signal to prevent signal loss and ensure a clear signal regardless of the length of the cable.
• IR – Send IR signals from the monitors to the source for discrete operation of devices.
• Loop out – Supports a local monitor.
• Power – One (1) 12VDC power supply included – set powered at transmitter end

• Input Video Signal	3.3V
  Input DDC Signal	5Vp-p (TTL)
  Maximum Single Link Range	4K@30Hz
  Video Format Supported	HDMI 2.0b, HDCP
  Audio Formats Supported	LPCM, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  Output Video	Up to 4K@30Hz/2K@30Hz
  Resolutions Supported	4K@30Hz/2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i
  Range	Up to 131′ (40m) at 4K@30Hz / Up to 230′ (70m) at 1080p
  Video Amplifier Bandwidth	297MHz / 10.2Gbps
  Video Input Connector	HDMI Type A 19-pin female
  Video Output Connector	HDMI Type A 19-pin female
  IR Pass-through Frequency	30~60 kHz
  Operating Voltage	12VDC
  Power Supply	2.5A@12VDC (1 Adapter) (2.1mm plug)
  Operating Temperature	32°~104° F (0°~40° C)
  Operating Humidity	20~90% RH (non-condensing)
  Dimensions	Transmitter:8-1/4″x11/16″x3-1/4″ (210x18x83 mm) Receivers: 3-1/8″x5/8″x2-3/4″ (80x17x69 mm)
  Weight	Transmitters: 15.8-oz (448g) Receivers: 4.6-oz (130g) (each)
