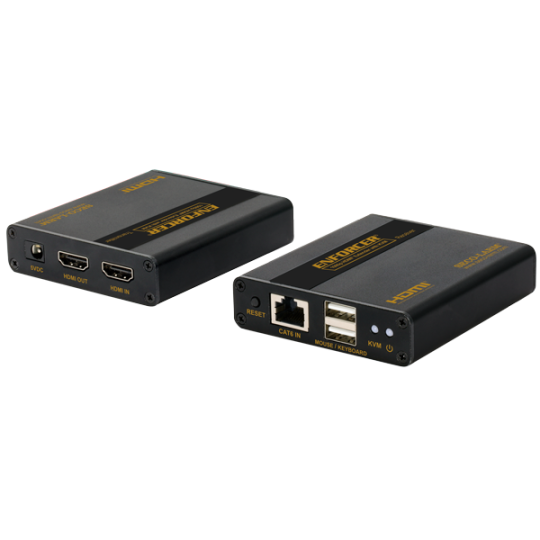

Seco-Larm MVE-AH1E1-01UQ HDMI Extender

The ENFORCER HDMI Extender with KVM allow you to transmit HDMI audio and video as well as a USB (2.0) signal up to 230ft (70m) over a single Cat6 cable using an active transmitter and receiver, allowing remote operation of a device such as a computer or NVR/DVR. The extenders also provide HDMI loop-out and KVM.

• Display up to 1080p
• Zero latency transmission up to 230ft (70m) over single Cat6/7
• Supports USB keyboard and mouse (KVM)
• Supports point to point connections
• Transmitter includes HDMI loop-out
• Lightning Protection, surge protection, and ESD protection.
• Receiver has L/R audio output

• Input video signal	3.3V
  Input DDC signal	5Vp-p (TTL)
  Maximum single link range	230ft (70m)
  Video formats supported	High-speed HDMI, HDCP 1.4
  Audio formats supported	PCM, LPCM, DTS-HD, DTS-Audio
  Output Video	HDMI
  Resolutions supported	1080p,1080i, 720p, 576p, 576i, 480p, 480i, 1920×1080, 1680×1050, 1440×900, 1366×768, 1280×960, 1280×720, 1024×768, 800×600
  Range (Cat6/6A/7)	Up to 230ft (70m)
  Video input connector	HDMI Type A 19-pin female
  Maximum input cable length	26ft (8m) AWG24
  Video output connector	HDMI Type A 19-pin female
  Maximum output cable length	26ft (8m) AWG24
  Cat6 Wiring standard	T-568B
  Operating voltage	5VDC
  Power supply	5VDC@1A
  ESD Protection	±8kV (air-gap discharge), ±4kV (contact discharge)
  Current Draw	Transmitter & Receiver: <2.5W
  Operating humidity	0~90%
  Operating temperature	-4°~140° F (-20°~60° C)
  Dimensions	2-15/16″x3-3/8″x3/4″ (74x85x19 mm)
  Weight	6.3-oz (180g)
