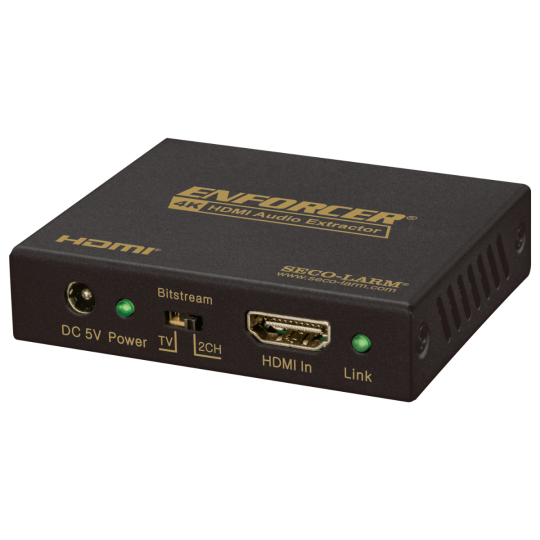

Seco-Larm MAP-A599-01Q 4K HDMI Audio Extractor

The ENFORCER 4K HDMI Audio Extractor extracts audio signals from any HDMI source to digital optical or analog stereo outputs to send to an audio system such as an audio/video receiver or amplifier. EDID management includes three presets—TV, bitstream, and 2-channel. It supports video pass-through resolutions up to 4K2K@50/60Hz.

• Supports video resolutions up to 4K2K@50/60Hz
• 10bits High Dynamic Range (HDR) pass through and 4:4:4 chroma subsampling
• HDMI 2.0b (full 18Gbps), HDCP 2.2, and DVI compliant
• Extracts HDMI audio to multi-channel optical (S/PDIF) or L/R analog stereo audio
• Allows simultaneous HDMI audio, multi-channel optical (S/PDIF), and L/R analog stereo
• Optical audio supports LPCM 2Ch, Dolby Digital 2/5.1Ch, and DTS 2/5.1Ch
• Supports HDMI High Bit Rate (HBR) audio pass through
• Supports uncompressed audio LPCM
• Supports compressed audio DTS Digital, Dolby Digital (DTS-HD and Dolby True HD)
• Audio sample rates up to 192kHz
• Supports CEC bypass
• Includes UL-listed 5VDC power supply

• Video formats supported	HDMI 2.0b, HDCP 2.2
  Color space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
  Color depth	10bit, 12bit
  Audio formats supported	HDMI (Pass-through): LPCM 2.0/5.1//7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, Dolby Digital Plus (DD+), DTS HD Master, Dolby Atmos, DTS-X Optical: LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1
  L/R Audio formats	Analog stereo 2CH
  Output video	HDMI
  Resolutions supported	4K2K@50/60Hz, 4K2K@30Hz, 1080p@120Hz, 1080p 3D@60Hz
  Video bandwidth	18Gbps
  Inputs	HDMI Type A 19-pin female
  Outputs	Video: HDMI Type A 19-pin female Audio:3.5mm L/R stereo, optical (S/PDIF)
  Max. HDMI cable length (IN/OUT)	4K@60Hz, 16′ (5m) / 4K@30Hz, 32′ (10m) / 1080p@60Hz, 50′ (15m)
  Operating voltage	5VDC
  Power supply	1A@5VDC (1 adapter)
  ESD protection (human body model)	(air-gap discharge), ±4kV (contact discharge)
  Current draw	1000mA
  Operating humidity	20~90% non-condensing
  Operating temperature	32°~104° F (0°~40° C)
  Dimensions	2-7/8″x11/16″x2-3/8″ (74x17x61 mm)
  Weight	4.6-oz (130g)
