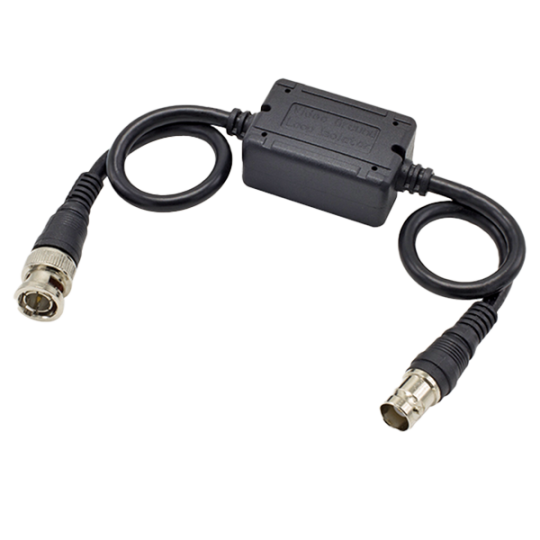

Seco-Larm EVG-1C12YQ 4-in-1 HD Ground Loop Isolator

The ENFORCER 4-in-1 HD Ground Loop Isolator is a passive device that helps to reduce ground loop interference caused by a difference in ground potential. Ground loop isolators can be deployed in new installations or added to existing installations.

Compatible with TVI, CVI, AHD, and Analog signals, reduces ground loop interference, built-in surge protection, BNC terminals, passive operation

• TVI / CVI / AHD / Analog compatible
• Reduces ground loop interference
• BNC terminals for easy installation
• Built-in surge protection
• Prevents video-signal distortion, picture tearing, cross talk, and other picture quality problems
• Passive operation – No external power required
• Use with standard BNC coax cables or with 4-in-1 HD video baluns

• Bandwidth	Video DC to 40MHz
  Insertion Loss	≤0.5dB
  Frequency Response	5Hz~10MHz
  Isolation Voltage	800VDC (min.)
  Insulation Resistance	≥100MΩ
  Surge Protection	4kV, 10/700μs IEC 61000-4-5/1955
  Connector- In	BNC Male
  Connector- Out	BNC Female
  Impedance	75Ω (BNC-to-BNC)
  Cable Length	7-7/8″ (200mm) each side
  Material	ABS Plastic
  Operating Humidity	0~95% non-condensing
  Operating Temperature	-4°~140° F (-20°~60° C)
  Dimensions	1-11/16″x1-1/8″x1-3/16″ (43x28x21 mm)
  Weight	2.0-oz (57g)
