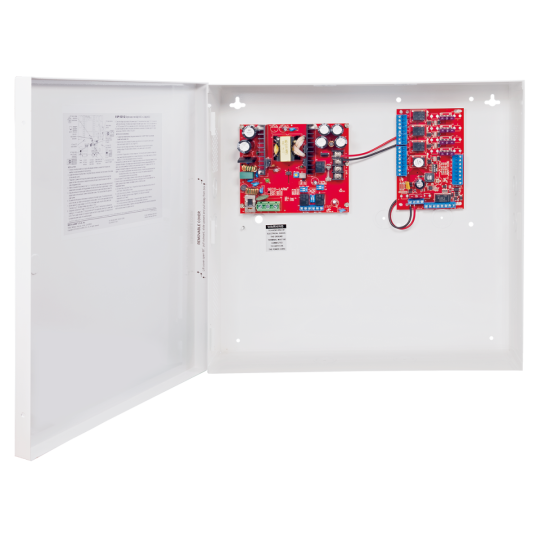

Seco-Larm EAP-5D4 Access Control Power Supply

The SECO-LARM EAP-5D4 power supply is specifically designed for an access control system’s electronic locks and accessories. The power supply centralizes the power sources of access control equipment. It includes two supervision relays that can be used to integrate with other systems such as an alarm control panel. Robust fault response and indication also includes gradual shutdown on output overload as well as immediate shutdown on output short, signaled by flashing red LED and with auto-recovery once output short or overload is removed.

• AC power failure supervision relay
• AC Power failure supervision relay
• Battery failure / low battery supervision relay
• DC Power failure supervision relay
• Auxiliary output relay
• Relays rated 3A@24VDC, 3A@120VAC
• Adjustable voltage range to compensate for voltage drop
• Built-in backup battery charger (battery not included)
• Selectable 2.2k 9 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays via DIP switch
• Selectable delay timer (5 seconds, 5 minutes, 5 hours) for AC failure supervision relay via DIP switch
• LED Status indicator for AC input, DC output and channel outputs

Power

• Input: 110~240VAC
• Operating Input voltage: 110~240 VAC
• Field-selectable 12 or 24 VDC output
• Total continuous output current: 5A@12VDC, 2.5A@24VDC
• Individually fused power output (PTC-type fuses) rated at 1.1A, fail-safe or fail-secure modes
• AC Input fuse rated at 3.15A

Enclosure

• Heavy-duty steel case with ventilation holes
• Enclosure large enough to fit two (2) 12V/12Ah batteries
• Removable steel cover for easy access to power connections
• 6ft Power cord and battery leads included
• Dimensions: 14¹³/₁₆“x14⁵/₁₆“x4¹/₈” (377x363x105 mm)
