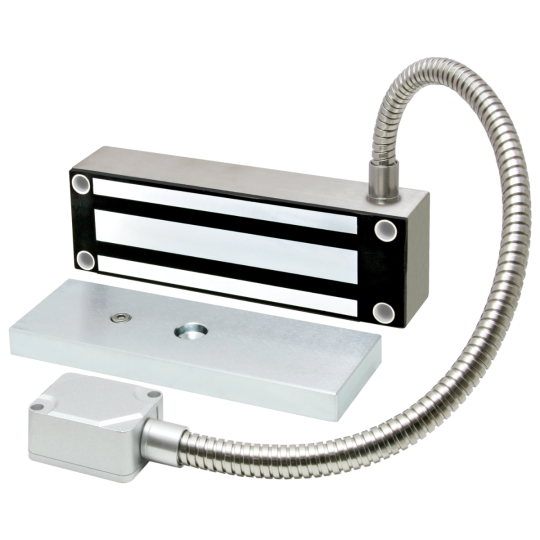

Seco-Larm E-942FC-1K2AR 1,200-lb Electromagnetic Gate Lock with Door Cord
In stock
SKU
seco-larm:e-942fc-1k2ar
$160.88
The SECO-LARM Electromagnetic Gate Lock with Door Cord combines a strong and durable gate lock with an armored door cord for ease of installation and greater security. 1,200-lb (544kg) holding force, it is suitable for almost any gate installation and can be installed horizontally as well as vertically.
Seco-Larm E-942FC-1K2AR 1,200-lb Electromagnetic Gate Lock with Door Cord
The SECO-LARM Electromagnetic Gate Lock with Door Cord combines a strong and durable gate lock with an armored door cord for ease of installation and greater security. 1,200-lb (544kg) holding force, it is suitable for almost any gate installation and can be installed horizontally as well as vertically.
| Operating voltage | 12/24 VDC |
| Holding force | 1,200-lb (544kg) |
| Current draw | 500mA@12VDC, 250mA@24VDC |
| IP Rating | IP65 |
| Connections | 18″ (457mm) Armored door cord with housing |
| Operating temperature | 14°~131° F (-10°~55° C) |
| Dimensions | Maglock: 8″x2-1/2″x1-9/16″ (203x63x40 mm) Armature Plate: 7-1/4″x2-3/8″x5/8″ (185x61x16 mm) |
| Weight | 10-lb 5.6-oz (4.7kg) |
| Insurance Price Type | Fixed |
|---|
