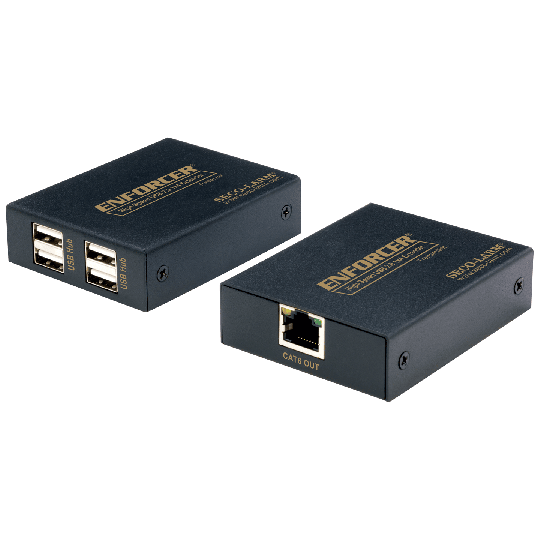

Seco-Larm DE-S104Q High-Speed USB

The ENFORCER High-Speed USB 2.0 1×4 Extender creates a one-to-one connection through CAT5e/6/7 network cables, transmitting signals up to 492′ (150m). It supports four (4) High-Speed USB 2.0 ports and is compatible with most USB 2.0 devices making it a good choice for office, security, audio/video, and medical facilities.

• Transmission range up to 492′ (150m) with Cat6/7 cable
• Supports four (4) High-Speed USB 2.0 inputs and one (1) High-Speed USB 2.0 output
• Compatible with Cat5e/6/7 network cables
• Plug and Play
• Extend transmission further with Gigabit switch support
• Hot-Plug USB (auto-detects USB type — High-Speed, Full-Speed, and Low-Speed)

• Compliance	USB 2.0
  Maximum speed	480Mbps
  Maximum range	CAT5e: Up to 328′ (100m) CAT6/6A/7: Up to 492′ (150m)
  Switch extension	Supports Gigabit switches
  USB Hot-Plug	Yes
  USB-A	Transmitter: One (1) output port Receiver: Four (4) input ports
  Cable	CAT5e, CAT6, CAT6A, CAT7
  Power supply	Transmitter: Powered by device. Receiver: 1A@5VDC
  Power consumption	Transmitter & Receiver: ≤2W
  Operating humidity	0~90% (non-condensing)
  Operating temperature	-4°~140° F (-20°~60° C)
  Dimensions	3″x13/16″x2-1/2″ (76x21x60 mm)
  Weight	Transmitter: 4.3-oz (123g) Receiver: 4.5-oz (128g)
