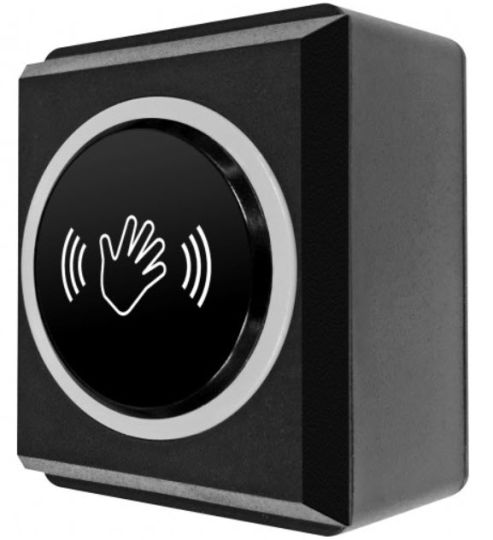

Seco-Larm CS-PD535-TAQ Infrared Proximity Sensor, Square
In stock
SKU
secolarm:cspd535taq
$26.00
- No-touch operation reduces the risk of spread of germs, viruses, etc., through cross-contamination
- Adjustable sensor range 2-3/8"~8" (6~20 cm), 3A relay, adjustable trigger duration 0.5~30 seconds or toggle
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
- OEM / Private label available
- No-touch operation reduces the risk of spread of germs, viruses, etc., through cross-contamination
- Adjustable sensor range 2-3/8"~8" (6~20 cm), 3A relay, adjustable trigger duration 0.5~30 seconds or toggle
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
- OEM / Private label available
| Operating Voltage | 12~24 VDC |
| Relay Type | Form C dry contact, NO/NC/COM, 3A@24VDC |
| Response Time | 10mS |
| Output Time | Adjustable, 0.5~30s, toggle, or as long as sensor is triggered |
| Range | Adjustable, 2-3/8"~8" (6~20cm) |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 1-3/4"x2-1/8"x1-7/16" (44x55x37 mm) |
