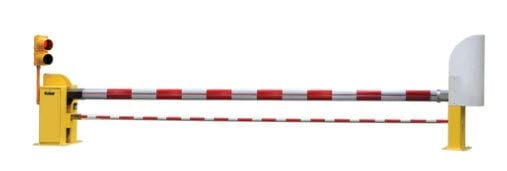

HySecurity StrongArm M30 Anti-Ram Barrier Arm

The StrongArm M30 anti-ram vehicle barrier arm reliably defends high-security sites worldwide.

High duty cycle, crash certified ASTM F2656-07 M30, P1* barrier arm. 12 to 24 ft (366 to 732 cm) clear opening, 6 to 8 seconds Open/Close and 5 to 7 seconds Emergency Fast Operate.

• Stop a 15,000 lb truck driving 30 mph/50 mph in its tracks.
• Unique dual arm design prevents a large truck or a small passenger vehicle from breaching the security perimeter
• Highly visible LED lighting protects against accidental impact
• Fast arm speed, 6-8 seconds*, reduces traffic backup by minimizing gate open time. *Depending on arm length
• Full 90º open prevents tall vehicles from clipping arm

Three foundations for easy, economical installation:

Shallow mount: 6 x 6 x 2 ft (183 x 183 x 61 cm), 4,000 psi concrete or (CO + 8 ft) x 6 x 1 ft (CO +244 cm) x 183 x 30.5 cm), 5,000 psi concrete.

Deep mount foundation: 4 x 4 x 4 ft (122 x 122 x 122 cm) 4,000 psi concrete. #5 rebar, grade 60
