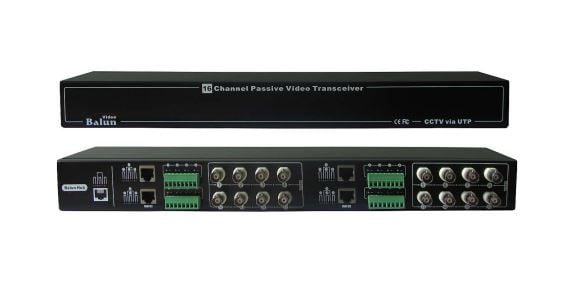

OP-4616SR 16 Channel Passive Video Transceiver
In stock
SKU
cctv:op4616sr
$86.00
Color video up to 1300ft(400m) with passive transceiver and
up to 1950ft(600m) with active receiver via UTP cat5e/6 cable
Built-in TVS for surge protection
FEATURES
- 16-Channel Passive Video Transceiver Hub
- Full-motion color video signal up to 1300ft(400m) and monochrome(B&W) up to 1950ft(600m) via UTP cat5e/6
- NTSC, PAL&SECAM video format compatible
- Real-time transmission
- No power required
- RJ45 and detachable terminal blocks for UTP cat5e/6
- Female BNC connector
- Exceptional interference rejection
- Built-in TVS(Transient Voltage Suppressors) for surge protection
- Lightning protection design Grade : III
- 50 dB corosstalk and noise immunity
- Compact size and easy installation
- Rack, wall mountable and desk installation with 4 rubber feet
- Black galvanized housing
APPLICATIONS
- Security Monitoring System
- Multimedia Network Teaching System
- Medical Monitoring Display System
- Industrial Automation Control System
- Banking, Securities, Financial Information Display System
- Remote Network Server Monitoring
- Department Store Security
- Casino Security
- Hospitals, Airports and Banks
- School Campuses
| Model | OP-4616SR | |
| Product Name | 16 Channel Passive Video Transceiver Hub | |
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | |
| Video | Video Format | PAL, NTSC, SECAM |
| Operating Frequency | DC to 5MHz | |
| Max Distance | UTP Category 5e(24AWG) Color:1300ft(400m) B&W:1950ft(600m) | |
| Common-mode/Differential-mode rejection | 15 KHz to 5 MHz 60dB typ | |
| Impedance | Coax, female BNC 75 ohms unbalanced | |
| UTP, Screw terminal block or RJ45 100 ohms balanced | ||
| Attenuation | 1.5dB typ Max | |
| Wire Type | Network wiring | One Unshielded Twisted Pair(for each video signal) 24-16 AWG(0.5-1.31mm) |
| Category Type | 2 or better | |
| Impedance | 100+20ohms / 100-20ohms | |
| DC Loop Resistance | 52ohms per 1,000ft (18ohms per 100m) | |
| Differential Capacitance | 19pF/ft max(62pF/m max) | |
| Power | No external power required | |
| Connector | Video input/output | Female BNC connector |
| Video input/output | pluggable screw terminal block and RJ45 for UTP(select one connection) | |
| Protection | Surge Protection | renewable solid state surge protection |
| Antistatic | YES | |
| Video Input | 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | |
| Video Output | 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | |
| Mechanical | Dimensions(L”W”H) | BNC connector & mounting bracket excluded (430*85*44.5mm) |
| Housing | Galvanized | |
| Body Color | Black | |
| Net Weight | 1250g | |
| Environmental | Operating Temperature | -20°~70°C |
| Relative Humidity | 0~95% (non-condensing) | |
| Storage Temperature | -40°~150°C | |
