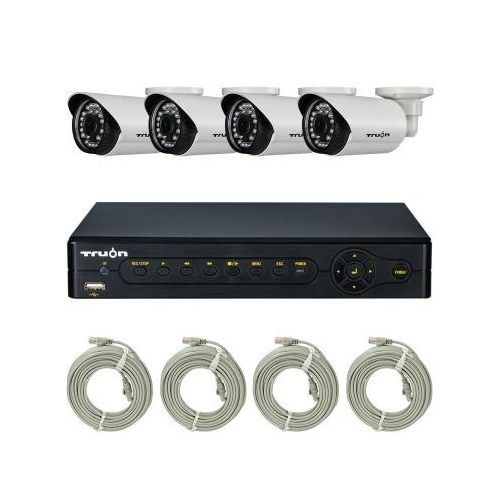

NPK-SR5C0413AE 960P 4CH IP Package (Cameras+NVR)
In stock
SKU
cctv:npksr5c0413ae
1 NVST SR504E PoE NVR /4 1.3MP 30 IR LED Weather Resistant Cameras (PoE) /4 18m Cables /1 15V 5A Power Supply with Power Splitter
FEATURES
- 4 × 960P (1280 × 960) IP camera with 30 meters IR night vision
- 4 channel network video recorder with 4 port POE switch built-in
- 4 pcs network cable, each 18 m
- Support iPhone/iPad/Android Mobile
- Support ONVIF
SPECIFICATIONS
| HD IR IP Camera | |
| Image Sensor | 1/3" 1.3Megapixel AR CMOS |
| Resolution | Main Stream: 1280 × 960,Sub Stream: 704 × 576 |
| Lens | 6mm(3.6mm, 8mm Optional ) |
| IR Light | 30pcs IR LEDS |
| Frame Rate | PAL:1 ~ 25fps, NTSC:1 ~ 30fps |
| Compression | H.264 Main Profile@Level 3.0 |
| Bit Rate | 0.1M~6Mbps |
| Electronic shutter | 1/25 ~ 1/100,000s |
| Low Lux | Color:[email protected] B/W:[email protected] |
| Dual Stream | Support |
| Function | Reset, Password Protection |
| Cell phone monitor | iPhone, iPad, Android |
| IMAC | Support |
| 3G network | N/A |
| POE | Support |
| Power consumption | ≤3W |
| Working temp | −10°C ~ +55°C / 14°F ~ 131°F |
| Working humidity | 10 ~ 85% |
| Dimension | L172mm×W74mm×H64mm |
| NVR | |
| IP Camera Input | 4 chD1 / 4 ch 720P / 4 ch 1080P |
| Audio Input | Through IP Camera Network Input |
| Protocol | ONVIF 2.2 |
| CVBS | 1ch, BNC |
| VGA | 1ch, 1440 × 900,1280 × 1024,1024 × 768 |
| HDMI | 1ch, 1.3a, 1280 × 1024,1024 × 768 |
| Resolution | D1, 720P, 1080P |
| Compression | H.264/MPEG 4 AVC, Main Profile 3.0 |
| Frame Rate | 1 ~ 30fps/D1,1 ~ 30fps/720P,1 ~ 30fps/1080P |
| Bit Stream Type | CBR / VBR |
| Video Bit Rate | D1 Max 2Mbps, 720P Max 4Mbps, 1080P Max 8Mbps |
| Audio Output | 1ch,BNC (3.3Vp-p,4.7Kohms) |
| Audio Compress | G.711A, G.711U, G.726, AAC |
| Audio Bit Rate | 16 ~ 128Kbps |
| Dual Stream | Support IP Camera Main Stream and Sub Stream |
| Playback | Max 4 CH (4 CHD1 / 2 CH 720P / 1 CH 1080P) |
| Motion Detection | Need IP Camera support ONVIF Motion Detection |
| Hard Disk | 1 SATA port |
| Network port | 1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port |
| USB Interface | 2 USB 2.0 ports |
| RS-485 | Standard 485, half duplex,PTZ control |
| Dimension(W×D×H) | 255 × 230 × 42(mm) |
| POE | 4 port POE |
| Installation | Desk type |
| Power Supply | 220V±10% 50Hz |
| Working Environment | −10 ~ +55°C / 10 ~ 90%RH / 86 ~ 106kpa |
