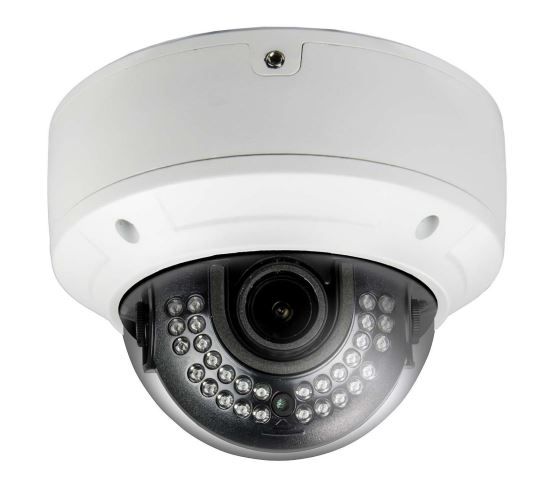

NIT-CS232FV-W 2MP Outdoor IR Dome IP Camera
In stock
SKU
cctv:nitcs232fvw
2 MegaPixel Resolution • 1/2.8" Sony Sensor • 2.8~12mm Vari-focal Lens • Mechanical IR-Cut Filter • Digital WDR (Wide Dynamic Range) • Power over Ethernet (PoE) • ONVIF Compliant • 30 IR LED • H.264 • DC 12V
FEATURES
- 1/2.8" Sony Sensor
- 1080P ( 1920 × 1080 ) Full Real-Time Coding
- Max.Resolution: 1920 × 1080
- ICR Auto Switch, True Day & Night
- 20 ~ 30m IR Night View Distance
- 3D DNR, Digital WDR
- Support Corridor Pattern
- ROI Coding
- Support CVBS Local Video, Two-way Audio
- Support PoE Power Supply
- Support Smart Phone, iPad, Remote Monitoring
- Support P2P
- Support Dual Stream
- IP66 & IK10 Ingress Protection
SPECIFICATIONS
| CAMERA | |
| Image Sensor | 1/2.8" CMOS |
| Image Size | 1920×1080 |
| Electronic Shutter | 1 / 25s ~ 1 / 100000s |
| Min. Illumination | 0 Lux ( IR LED ON ) |
| Lens | 2.8 ~ 12mm |
| Lens Mount | CS / ø14 |
| Wide Dynamic Range | Digital WDR |
| Digital NR | 3D DNR |
| IMAGE | |
| Video Compression | H.264 |
| Resolution | 1080P(1920 × 1080), 720P(1280 × 720), VGA(640 × 480), QVGA(320 × 240) |
| Multi-Stream | 1920 × 1080(1 ~ 30fps) / 1280 × 720(1 ~ 30fps) 1280 × 720(1 ~ 10fps) / 640 × 480(1 ~ 30fps) / 320 × 240(1 ~ 30fps) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI coding, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, sharpen, NR, etc. adjustable through client software or web browser |
| Audio Compression | G711A |
| INTERFACE | |
| Network | RJ45 |
| Video Output | CVBS video output (BNC×1) |
| Audio | Two-way audio(MIC IN × 1,MIC OUT × 1) |
| Storage Card | Support TF card, the max capacity is 64GB |
| RS485 | Yes |
| Alarm Input | 1CH |
| Alarm Output | 1CH |
| FUNCTIONS | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Protocol | TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP,FTP |
| Storage | TF card local storage; Network remote storage |
| Smart Alarm | Motion Alarm; Sensor Alarm |
| Day & Night | ICR |
| PTZ | RS485 × 1 |
| PoE | Yes |
| IR Distance | 20 ~ 30m |
| Water-proof | IP66 |
| OTHERS | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 3W |
| IR ON | < 6.5W |
| Operating Environment | −20°C ~ 50°C, 10% ~ 90% humidity |
| Dimensions | ø150mm × 114mm (ø5.9 in × 4.5 in) |
DIMENSIONS
unit : mm
