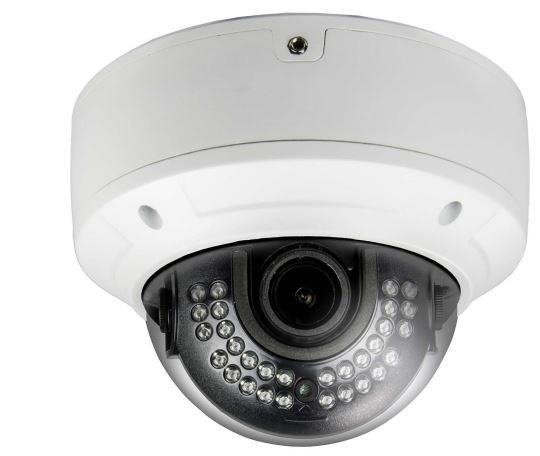

NIT-C532V-W31 IP Power IR Dome 5MP H.264H.265 IP66 3.6~10MM Lens
In stock
SKU
cctv:nitc532vw31
IP Power IR Dome / 5MP / H.264/H.265 / IP66 / 3.6~10mm Lens / PoE / DC12V / White Casing
IP66 & IK10 ingress protection • H.265 main profile video compression technology • high • compression ratio • stable stream control • 5MP ( 2592 1944 ) full real time coding • Max.resolution: 2592 1944 • ICR auto switch • true day • night • 20 ~ 30m IR night view distance • 3D DNR • digital WDR • Support 8 ROI coding • One gigabit ethernet network port • 10M • 100M • 1000M self-adaptive • Support SD card local storage • up to 128GB • Support CVBS local video • two-way audio and PoE power supply • Support smart phone • iPad • remote monitoring • Support P2P • Support three streams
SPECIFICATIONS
| Image Sensor | 1 / 1.8"CMOS |
| Image Size | 2592 × 1944 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Min. Illumination | 0.01 lux @F1.2, AGC ON; 0 lux with IR |
| Lens | 3.6 ~ 10 mm @F1.4, angle of view : 83.7° ~ 36.7° |
| Lens Mount | Φ14 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| Digital NR | 2D / 3D DNR |
| Angle Adjustment | Pan : 0° ~ 360°, Tilt : 0° ~ 77°, Rotation : 0° ~ 360° |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG |
| H.265 Compression Standard |
Main Profile @Leve4.1 High Tier |
| Resolution | 5MP ( 2592 × 1944 ), 2K ( 2560 × 1440 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 5MP (1 ~ 30fps) / 2K (1 ~ 30fps) / 1080P (1 ~ 30fps) / 720P (1 ~ 30fps) 50Hz : 5MP (1 ~ 25fps) / 2K (1 ~ 25fps) / 1080P (1 ~ 25fps) / 720P (1 ~ 25fps) |
| Bit Rate | 64 Kbps ~ 10Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| Audio Compression | G.711A / U |
| ROI | Support independent ROI configuration of each stream |
| Interfaces | |
| Network | Gigabit ethernet network port ( RJ45 1 ), 10M / 100M / 1000M self-adaptive |
| Audio | MIC IN × 1, MIC OUT × 1 |
| Video Output | CVBS video output ( BNC × 1) |
| Storage Card | Support SD card, up to 128GB |
| RS485 | Yes |
| Alarm Input | 1 CH |
| Alarm Output | 1 CH |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
| Interface Protocol | ONVIF, GB-T / 28181 ~ 2011 |
| Storage | SD card local storage, network remote storage |
| Smart Alarm | Motion alarm, Sensor alarm |
| PTZ | RS485 × 1 |
| PoE | Yes |
| IR Distance | 20 ~ 30 m |
| Water-proof | IP66 |
| Others | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 3W |
| IR Consumption ON | < 5.5W |
| Operating Environment | −4°F ~ 122°F(−20°C ~ 50°C),10 % ~ 90 % humidity |
| Dimensions ( mm ) | Φ150 × 114 |
| Weight ( net ) | 2.26lb(1025g) |
| Installation | Pendent mounting ( Wall mounting available with the junction box and bracket ) |
