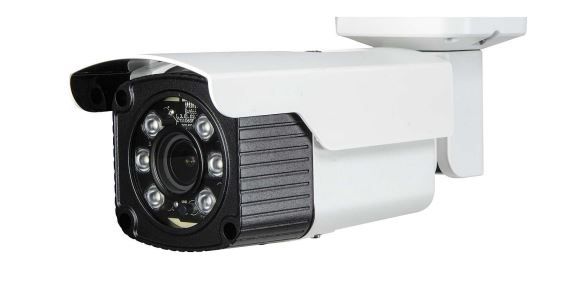

NIR-E2032V-W21 Outdoor Infared IP Bullet Camera 2.1MP VF Lens
In stock
SKU
cctv:nire2032vw21
2.1 MegaPixel Resolution • 2.8~12mm Vari-focal Lens • Mechanical IR-Cut Filter • DWDR (Digital Wide Dynamic Range) • Power over Ethernet (PoE) • ONVIF Compliant • 160 ft IR distance • H.264 • DC 12V
FEATURES
- 1/2.8in 2.1 Mega progressive scan CMOS
- H.264 H.265 1080p realtime recording
- Support intrusion detection
- 2D/3D DNR, DWDR, ROI, Anti-fog, IR_CUT
- Triple-Stream, Mobile APP, Support P2P
- Support PoE, Reset button, IR Array, TF Card
- Support ONVIF
- IP66
SPECIFICATIONS
| Sensor | 1/2.8" 2.1Mega progressive scan CMOS |
| Min.illumination | Colour:0.01Lux/F1.2; 0Lux/F1.2(IR ON) |
| Lens | 2.8 ~ 12mm Vari-focusing lens |
| IR distance | Up to 160ft |
| Electronic shutter | Auto(1/25s-1/10000s Adjustable) |
| Day/Night | Auto/Color / B&W (IR_CUT) |
| Noise Reduction | 2D/3D Digital Noise Reduction |
| Anti-fog | Support |
| WDR | Digital WDR |
| Image Adjustment | Sharpness,Brightness,Saturation,Contrast Adjustable |
| Video Encoding | H.264, h.265 |
| Encoding Type | H.265:MainProfile; H.264:High Profile/Main Profile/BaseLine Profile |
| Record Resolution | Main Stream: 1920*1080@25fps/30fps; Sub Stream: 704*576@25fps; Third Stream:1280*720@25fps |
| Video Bitrate Control | Support VBR/CBR |
| Video Bitrate Range | 32Kbps~8Mbps |
| Audio | 1 Audio Input ; 1 Audio Output |
| Alarm | 1 Alarm input ; 1 Alarm output |
| Storage | Support Micro SD/SDHC/SDXC Card Max 128G |
| RS485 | Support |
| Reset Button | Built-in reset button |
| CVBS output | Support |
| Network Interface | RJ45 10M/100M adaptive Ethernet interface |
| Motion Detection | Multiple detection zones, variable sensitivity levels |
| ROI | Support |
| Corridor Mode | Support |
| Privacy Masking | Four zones for privacy masking |
| Snapshot | JPEG capture,capture resolution is the max coding resolution |
| Security Features | Support password protection, watermarking features |
| Text Overlay | Support (Channel name and time title) |
| Alarm | Support network anomaly,mask alarm and etc. |
| Intelligent Function | Support line-crossing detection |
| Mobile APP. | IOS, Andriod |
| Network Function | TCP/IP / UDP / HTTP / IGMP / ICMP / DHCP / RTP / RTSP / DNS / DDNS / FTP / NTP / PPPOE / UPNP / SMTP |
| Protocol | Support ONVIF and CGI protocol |
| Protection Grade | IP66 |
| PoE | Support |
| Power | DC 12V |
| Operation Temperature | 14°F ~ 140°F(−10°C ~ 60°C) |
| Operation humidity | 10% ~ 90% |
| Power supply | 10W MAX |
| Dimensions | 98*96*265(mm) |
| Weight | 1200g |
