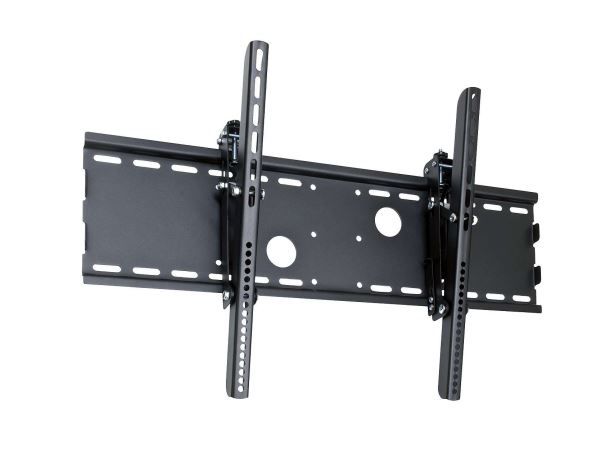

MM-PLB-14 PLASMA TV Wall Mount (Metal)
In stock
SKU
cctv:mmplb14bk
MM-PLB-14 Plasma Mount / VESA / Wall/BK
Overview
Easy to use and install, the popular model PLB-14 is designed to fit any 37"-70" curved & flat panel TVs up to 75kg/165lbs. This unit mounts in tilting position and tilts to a 15° down position the screen for an optimal viewing experience. Compatible with VESA hole up to 600 × 400.
SPECIFICATIONS
| Product Category: | TV wall mount |
| Rank: | Standard Series |
| By Function: | Tilting |
| Mounting Hole Pattern : | Universal |
| Material: | Steel |
| Color: | Black |
| Product Size With Open Position: | 80 × 810 × 500mm (3.1" × 31.9" × 19.7") |
| Fit Screen Size: | 37"-70" |
| Installation: | Solid wall, Double Stud |
| Rated Load: | 75kg (165lbs) |
| Strength Tested: | 3 times approved |
| Max. VESA: | 770 × 480mm |
| VESA Compatible: | 200 × 200,300 × 300,400 × 200,400 × 400,600 × 400 |
| Tilt Range: | −15° ~ 0° |
| Swivel Range: | No |
| Screen Level: | No |
| Screen Rotation: | No |
| Profile: | 80mm (3.1") |
| Bubble Level: | No |
| Anti-theft: | No |
| Cable Management: | No |
| Panel separated: | Yes |
| Fit Curved TV: | Yes |
| Certification: | UL |
| Patent: | No |
| Instruction Manual Included: | Yes |
