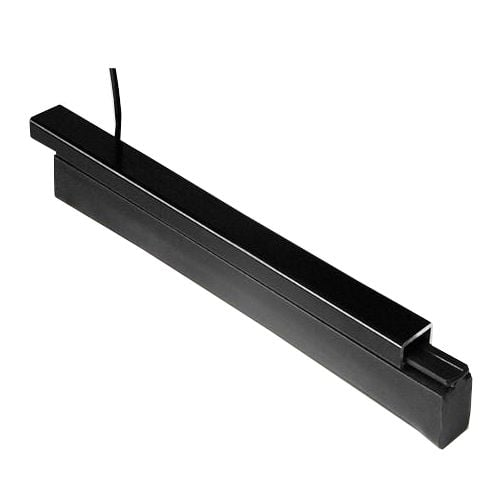

Miller Edge ME120-BK-2E-05-T2 10K Monitored 5' Safety Edge

Two-wire 10K Monitored Unit

Color: Black
Length: Per specification to nearest 1/4”
Max. Length: Up to 10 feet.
Lead Wire: SJTO, 18 gauge, 2ft. length
Sensitivity ME120: nominal 8-13 lbf MGO20 nominal 4-7 lbf
Electrical Diagram: 2 wire N.O. configuration
Electrical Maximum: 24 volt AC or DC,1/2 amp
Mechanical Diagram: See drawings on reverse side
Contact Element: Alumaglas Materials: Flexible PVC
Channel: Extruded PVC or Aluminum
Temperature Range: -30oF to +155oF
Wire Outlet Location: Right side, Left side or end

1 Year Warranty
