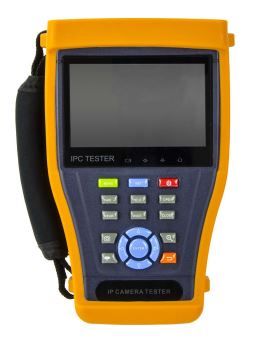

LD-M6500T All-In-One Test Monitor, VGA+Wi-Fi+PTZ Test
In stock
SKU
cctv:ldm6500t-unavailable
This Device come with 4.3 inch Touch Screen, it could display HD IP camera and analogue, as well as HD-SDI, TVI/CVI/AHD camera image , it support PTZ control, easy to use and operate . Built in network testing tools (IP address search, PING etc), quickly check the IP camera problem. Cable scan, TDR tester, easy to check the network cable, BNC cable problem, Optical power meter, Visual fault detector function, effective to solve the optical fiber transmission problem. And, the powerful Lithium battery could lasts 16 hours, built in WIFI，as well as test Wireless IP, 12V 2A power output for camera ,DC48V PoE power supply,5V 2A power output(as a power bank 13000mAh),HDMI output, Audio input and output, Network bandwidth testing, OSD menu rotates in 180 degrees，OSD menu can be rotated in 180 degrees by manual setting. This function is very convenient for the user to upward the downside to connect the LAN cable and do the testing.
FEATURES
- Support HD-IP & analog as well as HD-SDI, TVI/CVI/AHD camera test .
- Support video snapshot/record and playback ,zoom
- 4.3 inch touch screen，800*600 resolution
- Capacitive touch screen ,OSD menu
- Touch screen and key operational
- Built-in WIFI, wireless network camera test
- BNC input& output
- ONVIF/WIFI ,ONVIF PTZ control
- MPEG4,H.264,,MJPEG/MJPG IP camera image test
- Support 1080P HD video files and MKV/MP4 media files play
- PTZ controller ,Photograph, Video record, Record playback
- Color bar generator, analog video color bar and testing image output
- POE voltage measurement, PING test ,IP address scan, port flashing etc
- Audio in /out
- LED lamp, calculators, music players and other application tools
- Support customers self update software
- Lithium Ion Polymer Battery, working time lasts 8 hours
- Optical Power Meter/Multi-meter/Video level meter/Visual fault locator/TDR Optional
- Note: If IP camera manufacturers can offer Video Management Software that compatible with mobile phone or tablet PC, install the Video Management Software in the tester enable the tester to display IP camera image by IP camera viewer
SPECIFICATIONS
| Display | 4.3 inch Capacitive touch screen , resolution 800(RGB) × 600 |
| Network port | 10/100M auto adapt. RJ45 |
| WIFI | Built in WIFI. speeds150M. display wireless camera image |
| IP camera type | ONVIF. ACTI, Dahua IPC-HFW2100P, Hikvision,DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC ~ 2300T, Aipu-waton IP5000-BC ~ 13MP/IRS06 ~ 13MP, fine-Tida IPC, FSJ BY-1080Q, WEISKY IPC camera etc. Customized welcome |
| Video input/output | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| TVI/CVI/AHD test* | |
| TVI video signal test | 1 channel TVI in (BNC interface), 720p 25/30fps,1080p 25/30fps,camera OSD menu control over coaxial cable |
| CVI video signal test | 1 channel CVI in (BNC interface), 720p 25/30fps,1080p 25/30fps,camera OSD menu control over coaxial cable |
| AHD video signal test | 1 channel AHD in (BNC interface), 720p 25/30fps,1080p 25/30fps,camera OSD menu control over coaxial cable |
| HD-SDI test* | |
| SDI video signal test | 1 channel SDI in (BNC interface), 720p 25/30fps,1080p 25/30fps,camera OSD menu control over coaxial cable |
| Video Level Test: | Video signals measured in IRE or mV |
| Video level meter | PEAK video signal level, SYNC signal level, Color bar chroma level measurement |
| Zoom Image | Support Analog camera and IP camera image zoom /move |
| Snapshot, Video record and playback | Image Screen snapshot, record ,save ,view and record and play back |
| HDMI output | 1 channel HDMI output. support 1920*1080P |
| 12V/2Apower output | Output DC12V/2A power for camera |
| 5V power output | 5V 2A power output. as a Power bank |
| PoE power output | 48V PoE power output. Max power 24W |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| PTZ control | Support RS232/RS485 control, Baud 600 ~ 115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data monitor | Captures and analyzes the command data from controlling device. also can send hexadecimal |
| Network test | IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address |
| Cable scan | Search the cable by the audio signal |
| PoE test | Measurement POE switch or PSE power supply voltage and cable connection status |
| POWER | |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery ,6500mAh |
| Rechargeable | After charging 7 ~ 8 hours, normal working time 16 hours |
| Parameter | |
| Operation setting | Capacitive touch screen, OSD menu. Chinese/English |
| Auto off | 1 ~ 30 (mins) |
| General | |
| Working Temperature | −10°C ~ +50°C |
| Working Humidity | 30% ~ 90% |
| Dimension/Weight | 231mm × 172mm × 52mm / 1.26Kg |
