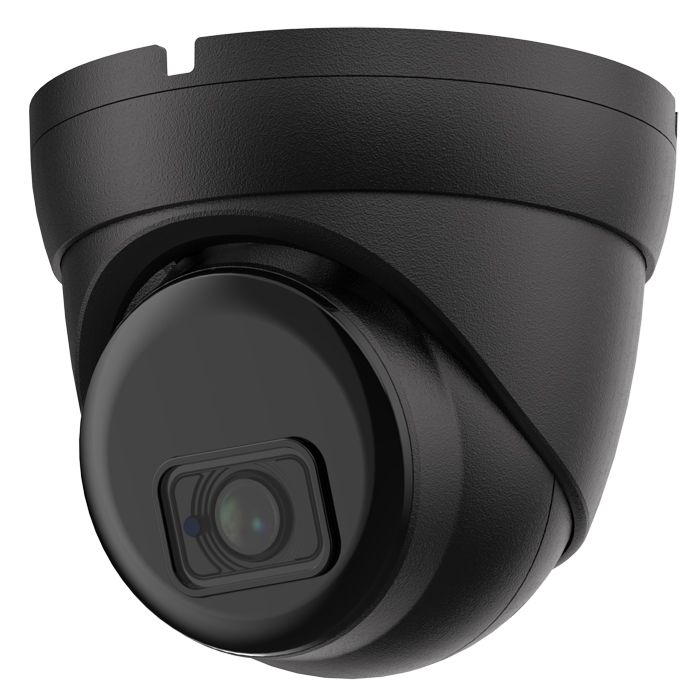

IPC-EDFR5MP-TD-S-B 5 MP IP IR Turret Dome PoE Camera with Mic

‌IPC-EDFR5MP-TD-S-B 5 MP IP IR Turret Dome PoE Camera With Mic

● 5MP 2592(H)×1944(V)

● HD Video Output

● H.265+ H.264+ Ready, H.264. MJEPG

● Built in Mic, 3D DNR, BLC, WDR, ICR

● IR Range: Up to 100 ft

● Dual Video Streams

● IP66 Rating

● Metal housing & Bracket

● True Day/Night

Technical SpecificationsModel No.IPC-EDFR5MP-TD-S-BCameraImage sensor1/2.7" Progressive CMOSMin. illumination0.01 lux @F1.2, AGC ON, 0 lux with IRShutter time 1/3s ~ 1/10,000s Lens 2.8mm @F2.0 Angle of view: 109° Lens mountM12Day & night IR cut filter with auto switch Digital noise reduction3D DNRWide dynamic rangeDWDRMicBuilt-inCompression StandardVideo compressionH.264 / MJPEG / H.264+/H.265+H.264 codec profileMain profile Bit rate32 Kbps ~ 16 Mbps Dual streamsSupportImageMax. Image Resolution5MP 2592(H)×1944(V)Frame rate60Hz: (1~15fps)5MP(2592×1944),4MP(2592x1520) 3MP(2048x1520),1080P(1920x1080) 960P(1280x960), 720P(1280x720)Image settingsRotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browseBLCYes, zone configurable ROI CodecSupportNetworkNetwork storage NAS (Support NFS,SMB/CIFS), ANRAlarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exceptionProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6Interoperability ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPISecurity User Authentication, watermarkInterfaceCommunication interface1 RJ45 10 M / 100 M Ethernet interface Web BrowserIE 7, IE 8, IE 9P2P ConnectionBuilt in Mobile AppRXCAMVIEW Android/iPhoneGeneralOperating conditions(-22°F ~ 140 °F) humidity 95% or less (non-condensing) Power supply12 VDC ± 10% , PoE (802.3af)Power consumptionMax. 5W (Max 7W with IR cut filter on)Weather proof ratingIP66IR rangeIR Up to 100 ftDimension 4.33" x 3.88" x 4.33"Weight 1.1 lbs
