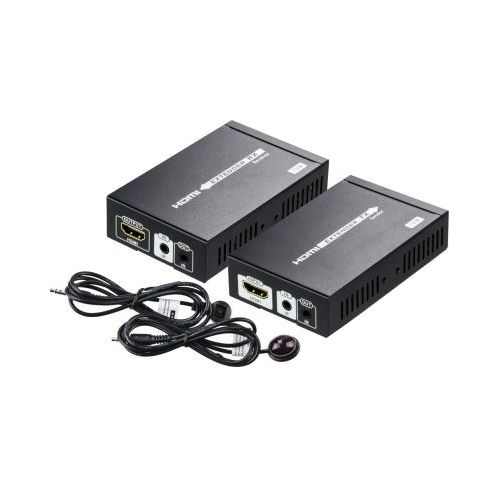

HA-EXT40A-IR HDMI Extender
In stock
SKU
cctv:haext40air
FEATURES
- Apply HDBaseT extend technology
- Uncompressed HDMI video signal
- Support full HD 1080p@60Hz, 3D, 4Kx2K
- Extend 1080p signal over cat6a up to 70 meters
- Support bi-directional IR pass back
- Support HDCP ,CEC, 24 deep color
- Support uncompressed LPCM audio and compressed DTS-HD, Dolby True HD
- Can be powered by network cable. It only needs to input 12V power for either transmitter or receiver for normal working.
This HDBaseT single network cable extender transmits HDMI signal up to 70meters over cat6 fluently and clearly. It is lossless in signal and supports 3D, 24bits deep color, 4Kx2K, CEC and HDCP.
SPECIFICATIONS
|
HDMI signal |
4K—2K, compatible with HDCP, support CEC and 24bits deep color |
|
Resolution supported |
480i / 480P / 576i / 576P / 720P / 1080i / 1080P / 3D / 4K—2K |
|
Audio |
LPCM, DTS-HD, Dolby True HD |
|
Network cable |
CAT5E , CAT6, CAT6A, CAT7 |
|
Transmission Length |
CAT5E / CAT6 ~ 60m/195ft (up to 1080P@60Hz 36bpp) |
|
CAT6A / CAT7 ~ 70m/230ft (up to 1080p@60Hz 36bpp) |
|
|
Infrared back |
Support 20 ~ 60kHz wide frequency devices devices and Bi-directional IR transmission |
|
Power Supply |
DC 12V / 2A 1pc |
|
Power consumption |
<8W |
|
Product dimension |
98.5(L)66.5(W)23(H)mm 2pcs |
|
Enclosure material |
Metal |
|
Weight |
TX : 79g / RX : 107g |
|
Color |
Black |
